Peerless TC9FD18-08, 3.5" Full Range

No Longer Stocking

Peerless TC9FD-18-08 3.5" Full Range

• Coated paper cone with rubber surround
• Front mounted gasket for rear mount applications
• Copper cap on pole piece
• Polymer chassis
• Frequency response 100Hz to 20KHz
• High Qts indicates this driver will work in a small sealed enclosure

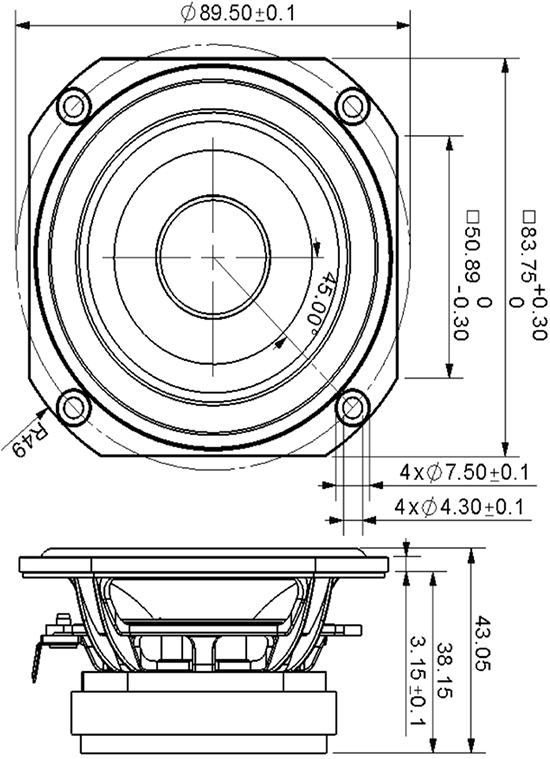

• Flange 83.7 mm square
• Cutout 78mm
• Depth 39mm
• There are 45 pieces to a case
• Larger terminal is positive, also marked with plus in red tab

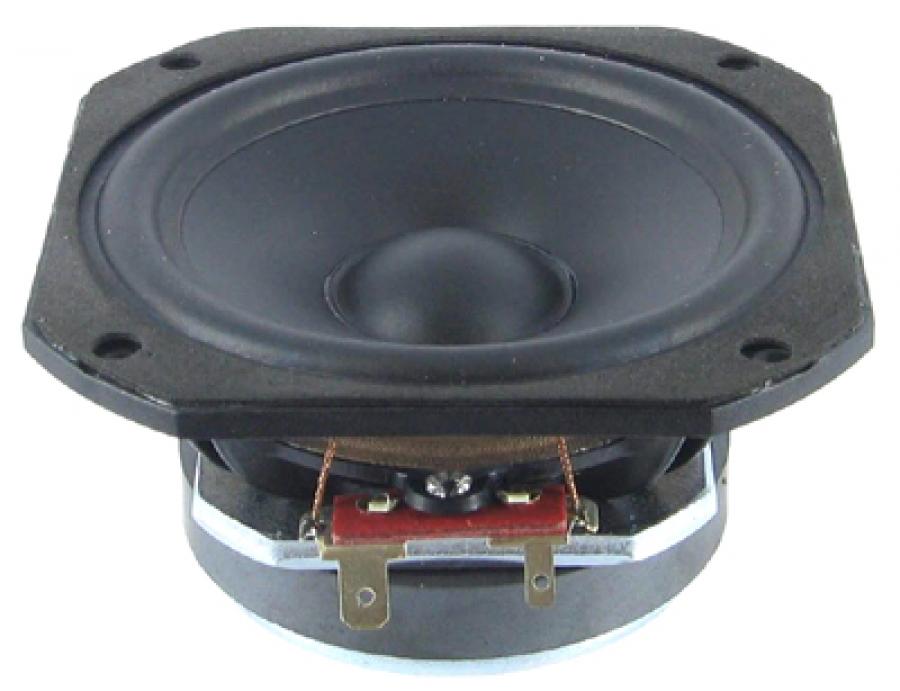

This TC family 3.5 inch 8 ohm full-range driver,with ferrite magnet, paper cone, rubber surround, and plastic basket with front sealing gasket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and compact applications in mind.

The high Qts of this speaker indicates a sealed enclosure would be best.  We recommend anything from 0.1 to 0.2 cubic foot for a roll off on the low end around 110Hz.

This product was previously branded as Vifa.
