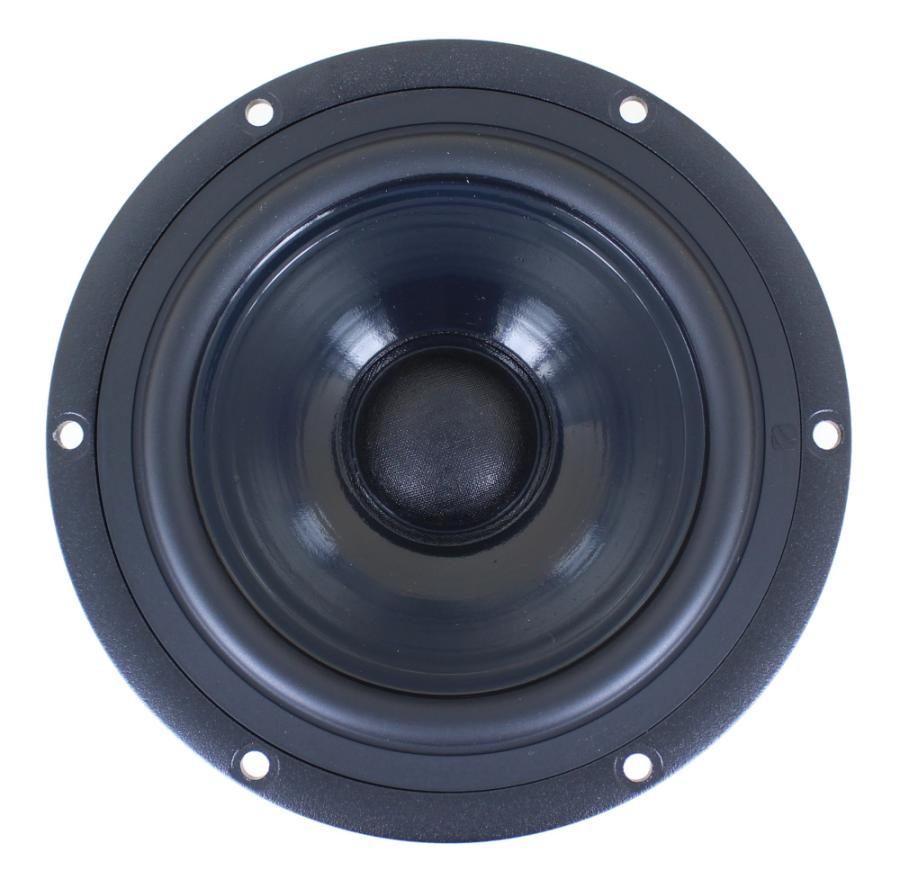

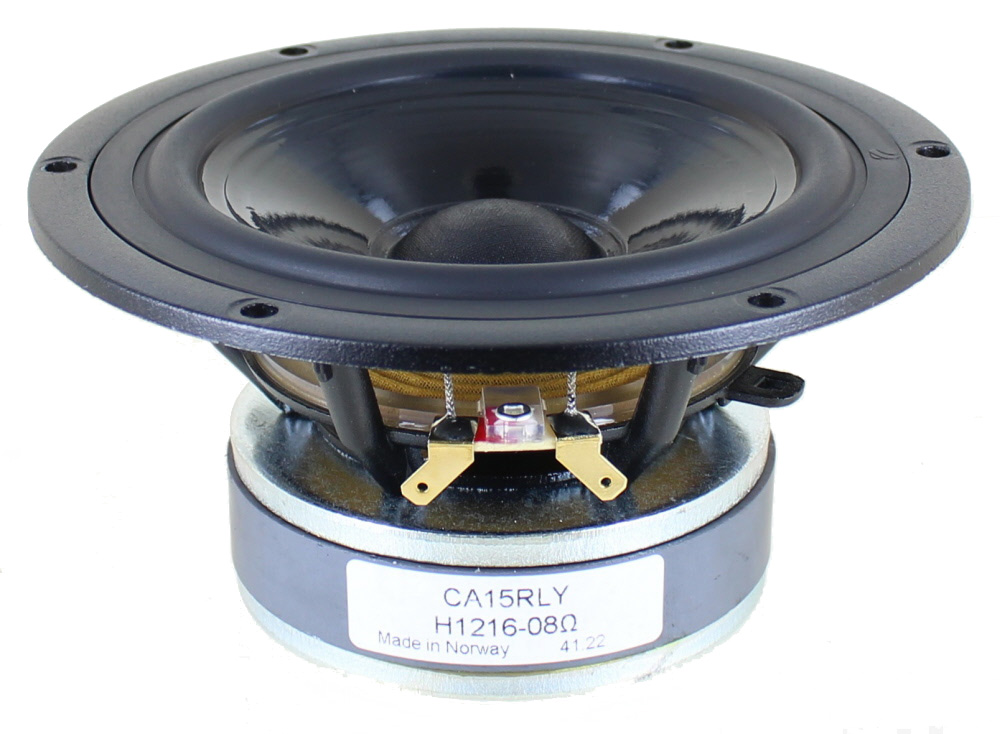

SEAS Prestige CA15RLY (H1216) 5.5" Coated Paper Cone Woofer

Seas Prestige CA15RLY (H1216) 5.5" Coated Paper Cone Woofer- 146mm- 8 ohm

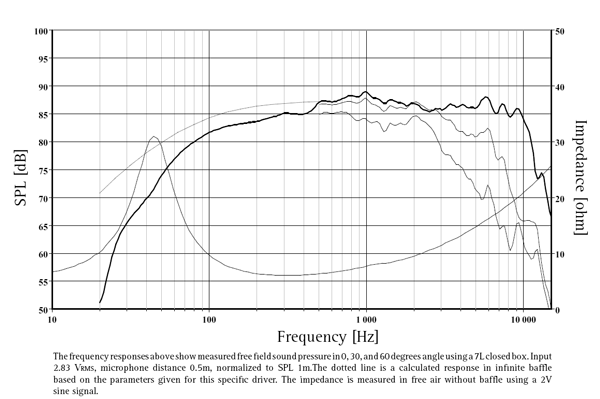

5’’ (146mm) cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Smooth extended response with well controlled rolloff.

H1216+ H0737 2-way Passive Crossover Design
H1216 x2 + XT25TG30-04 MTM Passive Crossover Design

• Classic coated paper cone that gives a smooth extended frequency response with a controlled roll off.
• Large magnet system together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and good transient response.

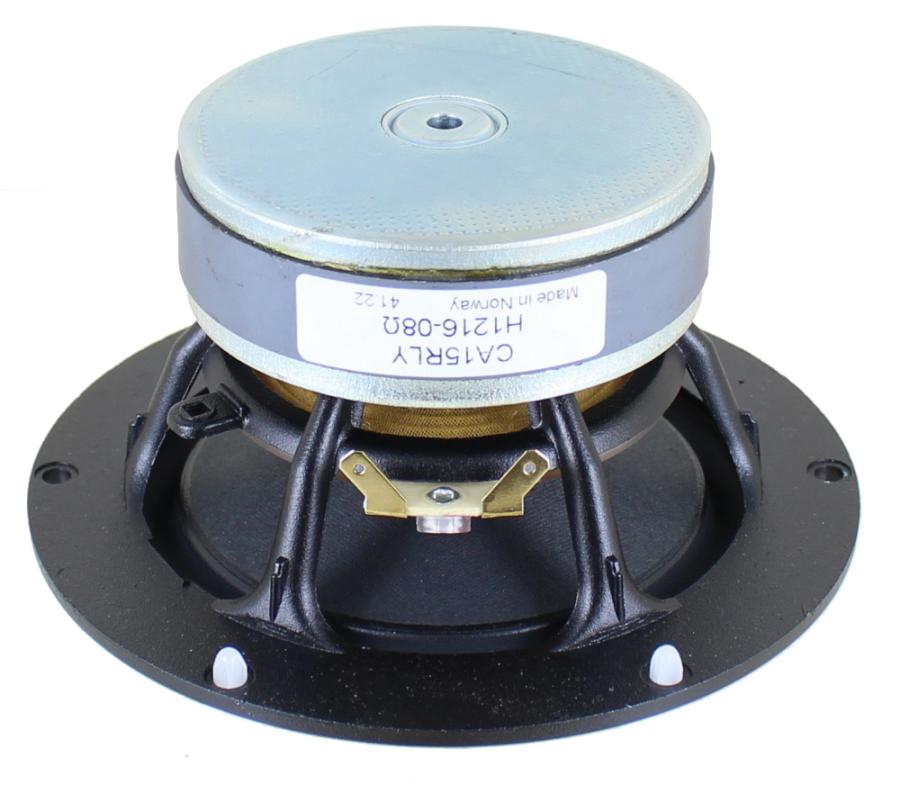

• Extremely stiff and stable injection moulded metal basket, that keeps the critical components in perfect alignment.

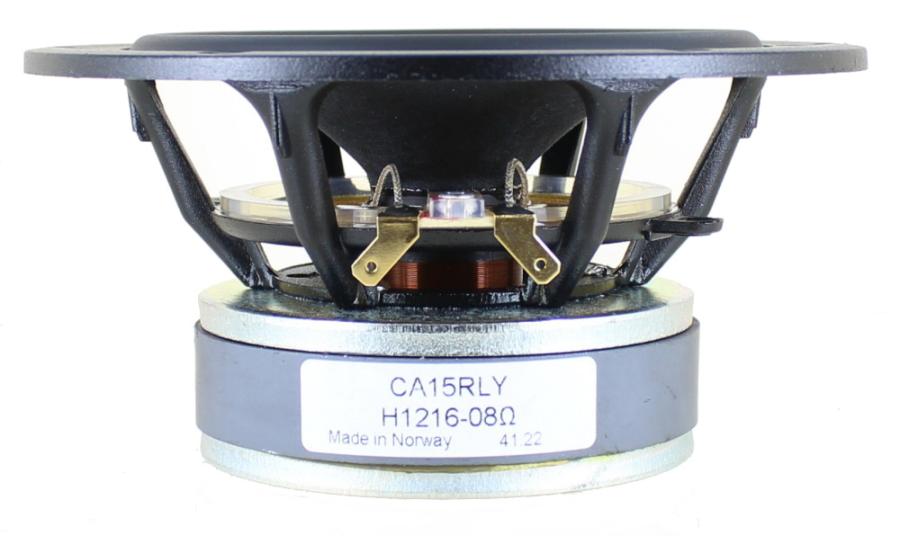

• Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Enclosure suggestions:

• Sealed box of 0.15 cubic foot for F3 of 115Hz.
• Vented box of 0.25 cubic foot with a 1" diameter vent by 3" long for F3 of 68Hz.
