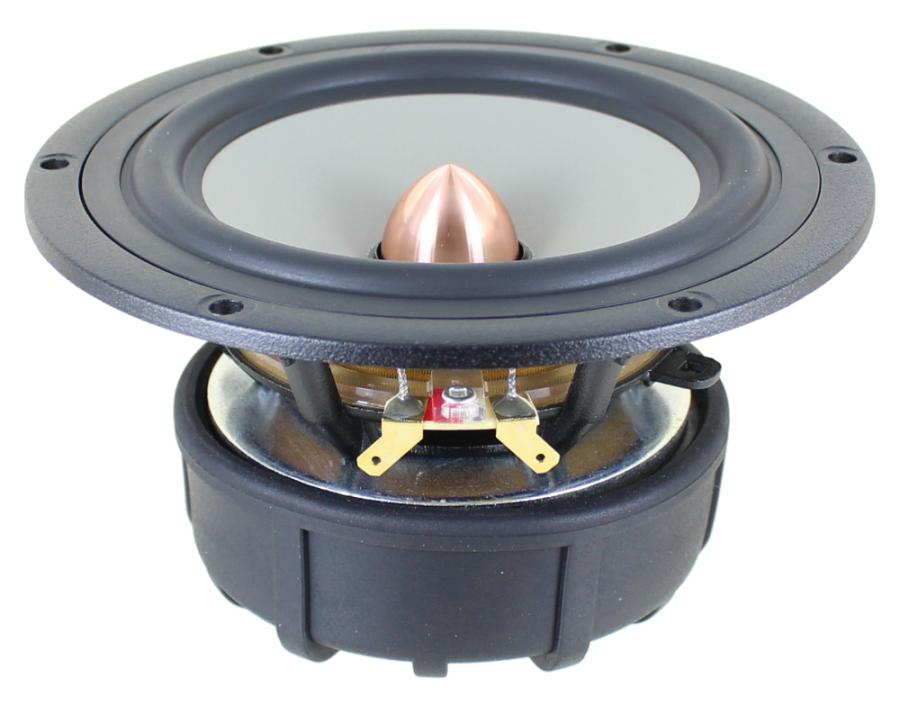

SEAS Excel W15CY-001 (E0015) 5.5" Magnesium Cone Woofer

SEAS Excel W15CY-001 (E0015) 5.5" Magnesium Cone Woofer- 146mm- 8 ohm

Large magnet system for improved sensitivity and transient response. Great for MTM.

• Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances
• Gold plated terminals mounted on a stiff glass fibre reinforced plate to reduce contact resistance and improve reliability
• Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin
• Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment
• Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum

Suggested box alignments:

Sealed box 0.15 cubic feet for F3 of 90Hz.  50% filling
Vented box 0.3 cubic feet for F3 of 47Hz.  1.5" diameter vent by 6" long
Vented box 0.5 cubic feet for F3 of 39Hz.  2" diameter vent by 8" long
