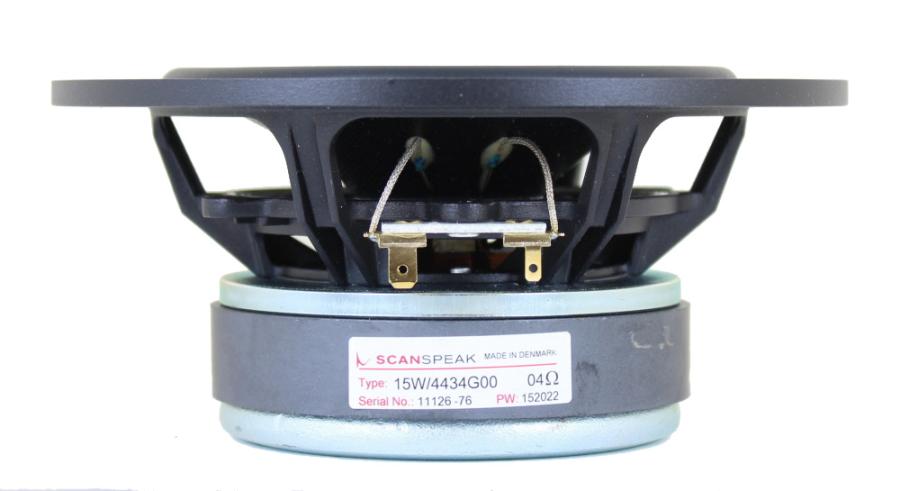

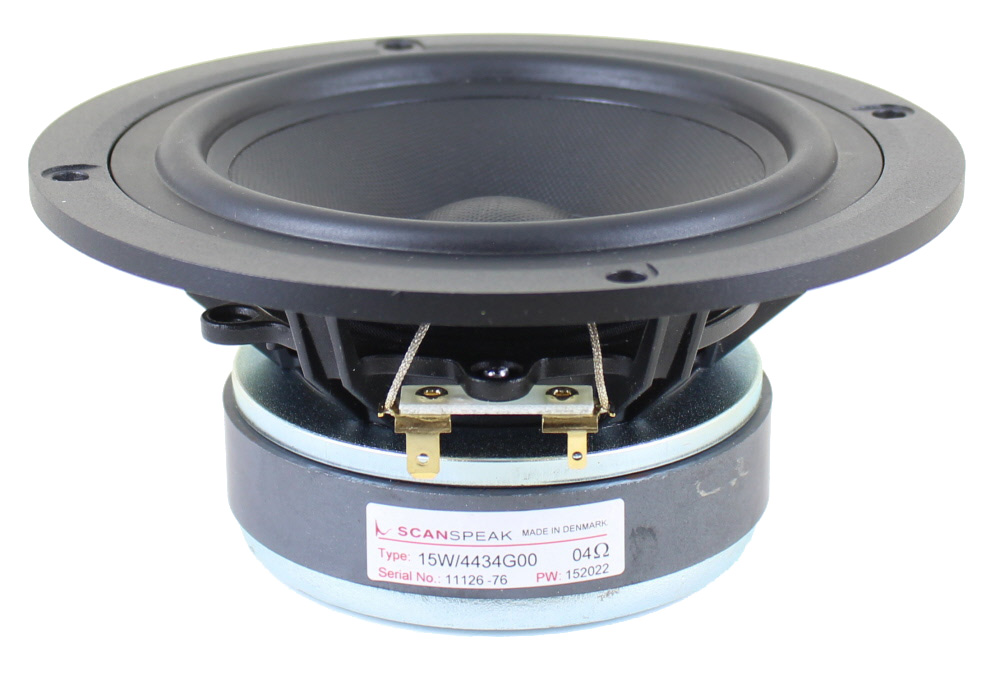

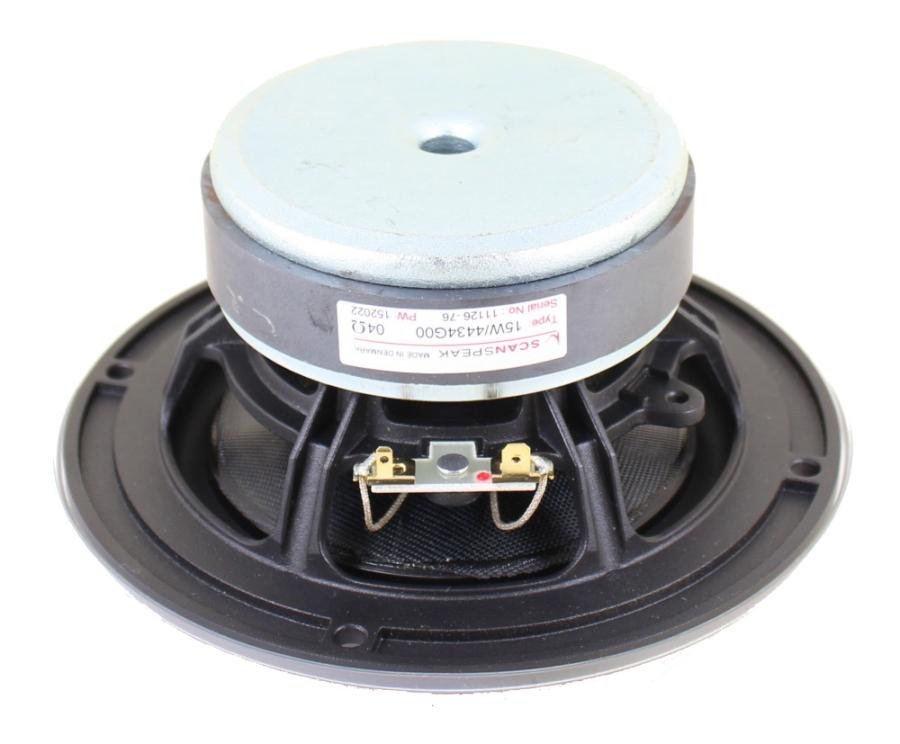

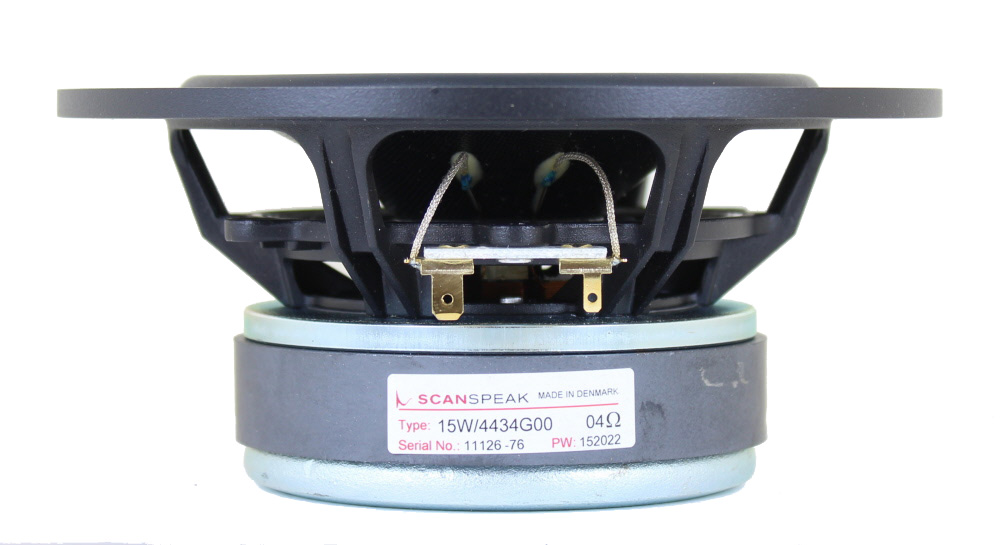

Scanspeak Discovery 15W/4434G-00, 5.5" Midwoofer, 4 ohm

Scanspeak Discovery 15W/4434G-00 5.5" Coated Fiberglass Cone Midwoofer- 149mm- 4 ohm

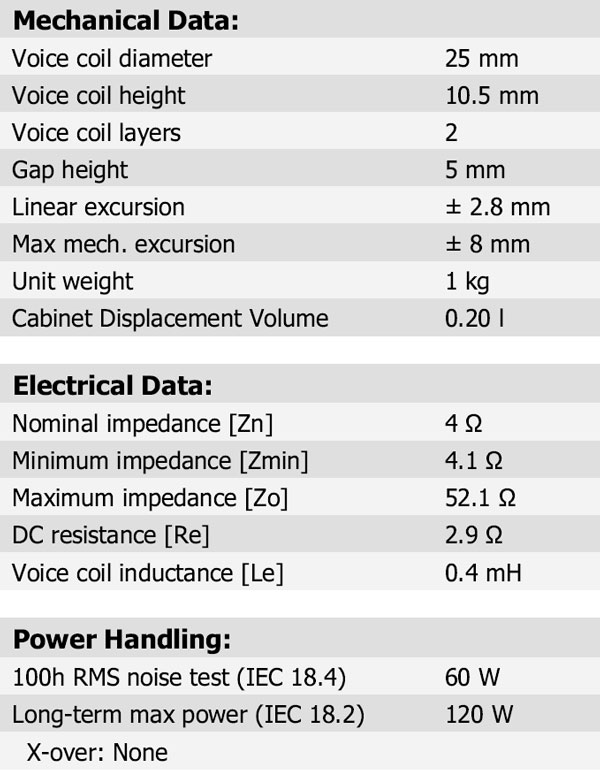

Spec Sheet PDF

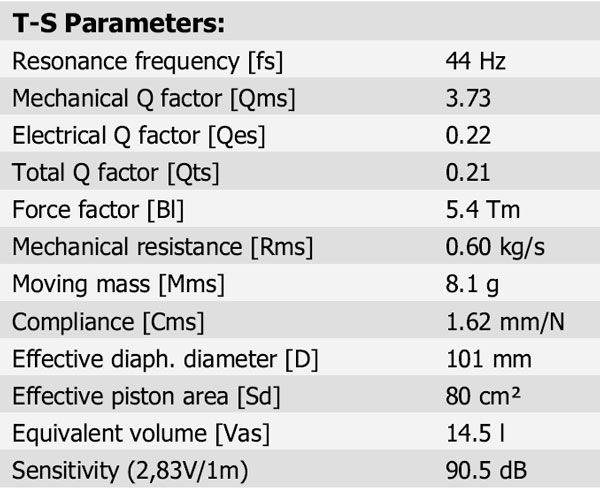

Low Q, good for very small ported boxes. F3 70 Hz in just 0.2 cf3.

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

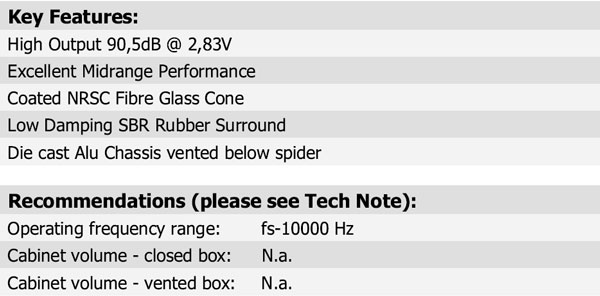

• High Output 90dB @ 2,83V
• Magnet System w. Alu Ring
• Die cast Alu Chassis vented below spider
• Coated NRSC Fibre Glass Cone
• Low Damping SBR Rubber Surround
• Aluminium Chassis, Fiber Glass cone, NR rubber surround, Vented below spider

Box suggestions:

0.15 cubic foot box with 20% filling for an F3 of 170Hz (good for use as a midrange)

0.2 cubic foot box with 1.5" vent by 4" long for an F3 of 70Hz

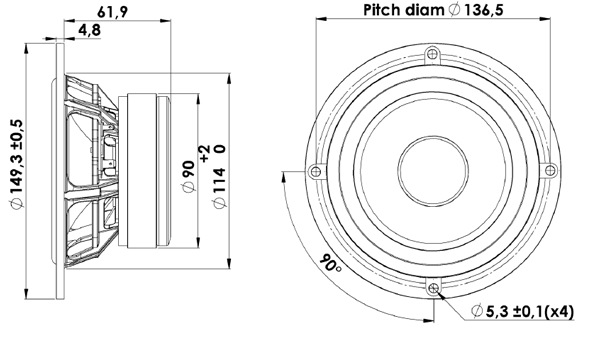

The 15W/4434G has the same frame size and should be considered as a replacement for the PL14WJ09-04 or the MG14WK09-04.
