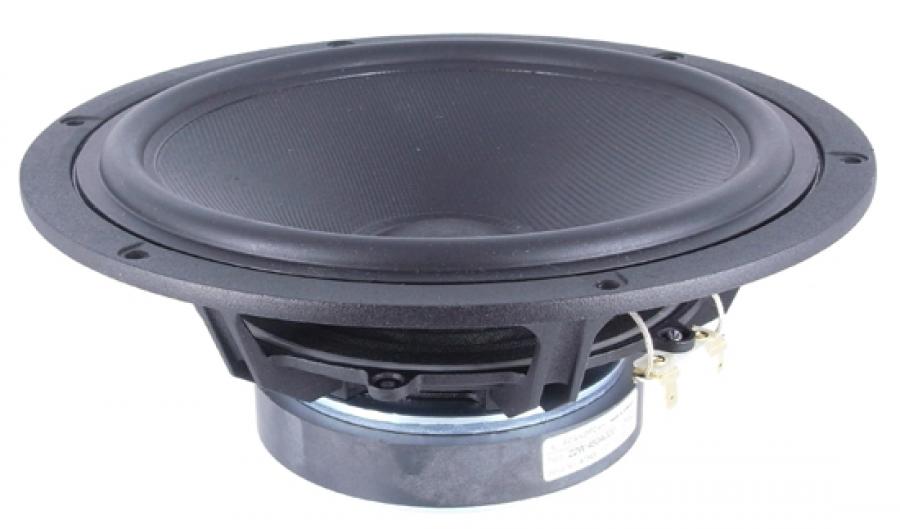

Scan-Speak Discovery 22W/8534G00 8" Fiberglass Cone Woofer- 225mm- 8 ohm
Spec Sheet PDF
Good for moderate-sized vented box, please see some Madisound suggestions below. The 22W/8534G has the same frame size and should be considered as a replacement for the Vifa PL22WO09-08 or the MG22WO09-08.
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements – plus a wealth of technical features and finesses – it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.
- NRSC Fibre Glass Cone
- Fibre Glass dust cap
- High sensitivity 89dB
- Long Linear excursion
- 30Hz Resonance Frequency
- Diecast Aluminium basket
- Vents below spider
- Low damping rubber surround
Madisound recommends:
- 0.85 cubic foot (24 ltrs) sealed, F3 59 Hz
- 1.5 cubic foot (42.5 ltrs) vented, 2" x 4" or 3" x 9.5", F3 38 Hz
- 1.8 cubic foot (51 ltrs) vented, 3" x 8", F3 35 Hz
Scan-Speak DIY Kits:
DISCOVERY-FOUR (R2604/833000, 18W/8535-01, 22W/8534G00, 26W/8534G00)ScanSpeak Bookshelf-3WC (D2608/913000, 12W/8524G00, 22W/8534G00)ScanSpeak Discovery-3WC-mkII (D2608/913000, 15W/8434G00, 22W/8534G00)ScanSpeak Discovery 861 (D2608/913000, 18W/8434G00, 22W/8534G00)






This product may be listed as: 22W 8534G 00, 22W 8534 G00, 22W8534G00, 22W 8534 G00, 22W8534G
