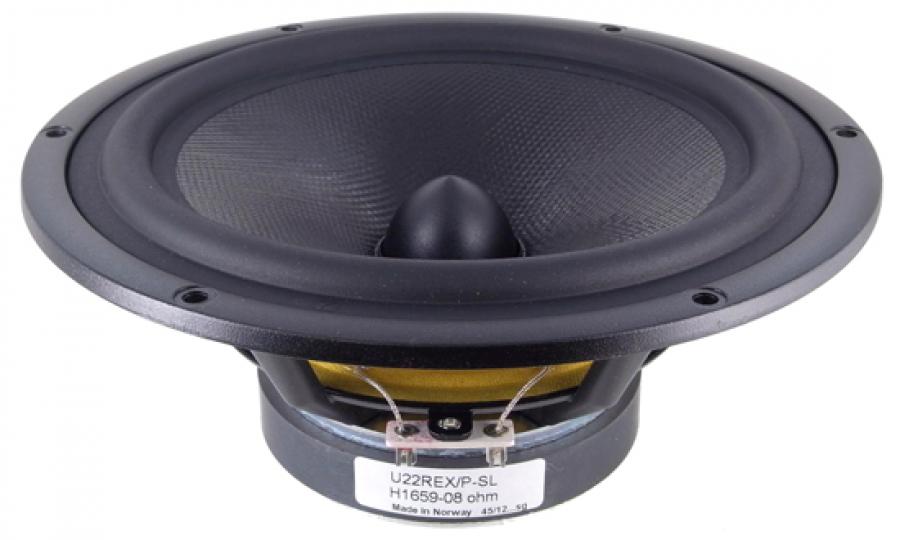

Seas U22REX/P-SL (H1659-08) 8" Curv Cone Woofer

Seas Prestige U22REX/P H1659 8" Curv Cone Woofer

Spec Sheet PDF

Designed for use in the Linkwitz Lab LX521 Open Baffle Speaker

U22REX/P-SL is a 8” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs.

New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.

Bumped back plate in the magnet system together with a high temperature voice coil wound on an aluminium voice coil former gives low distortion and high power handling capacity. Heavy copper ring below the T-shaped pole piece will reduce non linear and modulation distortion.

Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.

Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

In 1 cubic foot with 2" dia by 2.5" long port (or 3" dia by 7.25" long) the F3 is 50Hz.

In 1.5 cubic foot with 3" dia by 5.25" long the F3 is 42Hz.

In 0.35 to 0.50 cubic foot sealed, the F3 is 85Hz
