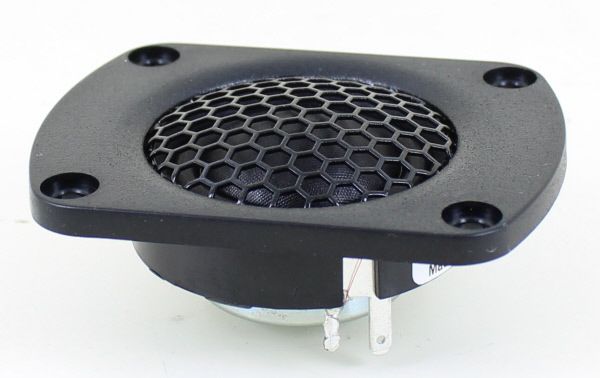

SEAS Prestige 27TFFNC/CG (H1406) 1" Textile Dome Tweeter- 4 ohm

SEAS Prestige 27TFFNC/CG (H1406) 1" Textile Dome Tweeter- 69.7mm- 4 ohm -truncated flange

Spec Sheet PDF

High SPL, good for autosound.

Compact design neodymium magnet tweeter for high quality speaker designs in small cabinets or automobiles. Sonolex precoated lightweight fabric diaphragm and suspension allows for very tight production tolerances and high consistency. Wide roll surround together with a double chamber magnet system result in a low fundamental frequency. Very low magnetic stray fields make this unit suitable for A/V systems. The voice coil is immersed in magnetic fluid, allowing high power handling capacity and simplified crossover design.

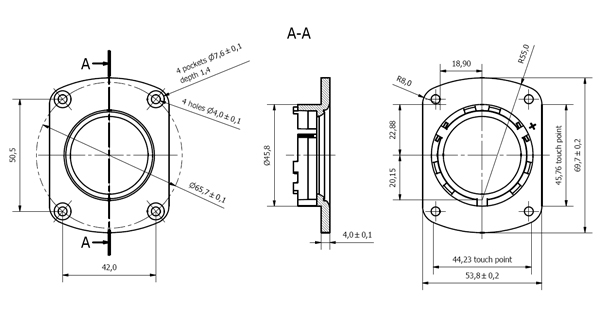

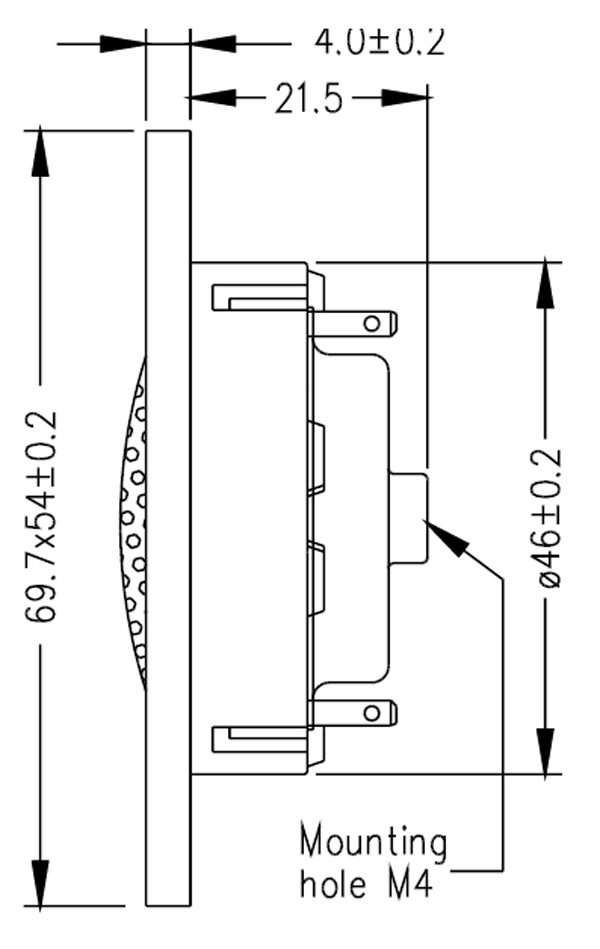

Seas does not provide mounting hardware for this tweeter. It can be mounted by press fit, mounting from behind or using a modified mounting cup. The back of the tweeter is threaded for an M4 bolt for fastening from behind.
