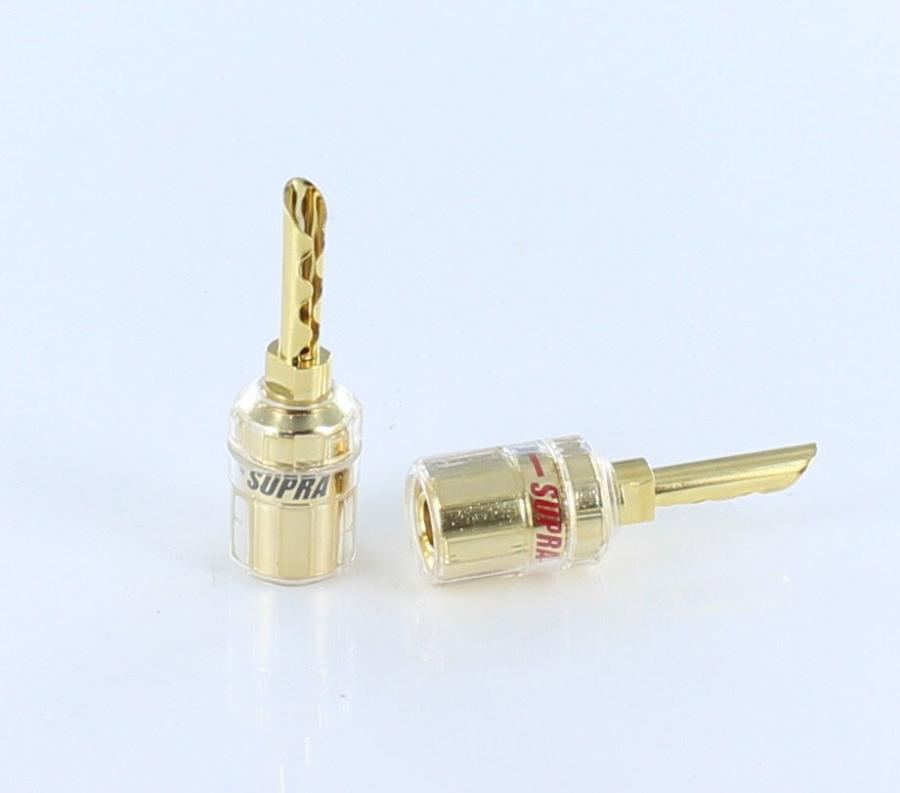

Supra CombiCon Banana - Pair
Spec Sheet PDF
See CombiCon Spade version here.
Supra CombiCon Series - A versatile, robust series of contacts
The Supra CombiCon allows for changing contacts from BFA/banana to Fork in a blink of an eye. And back again for that matter, providing for exceptional freedom and flexibility for any new demand. Electrically, the Supra CombiCon matches any of our cables and the design specification was clear-cut, it must not be a bottleneck for our Supra Sword speaker cable. Rest assure, there is not any contact, making a better job for Supra cables, even though there are much more expensive.

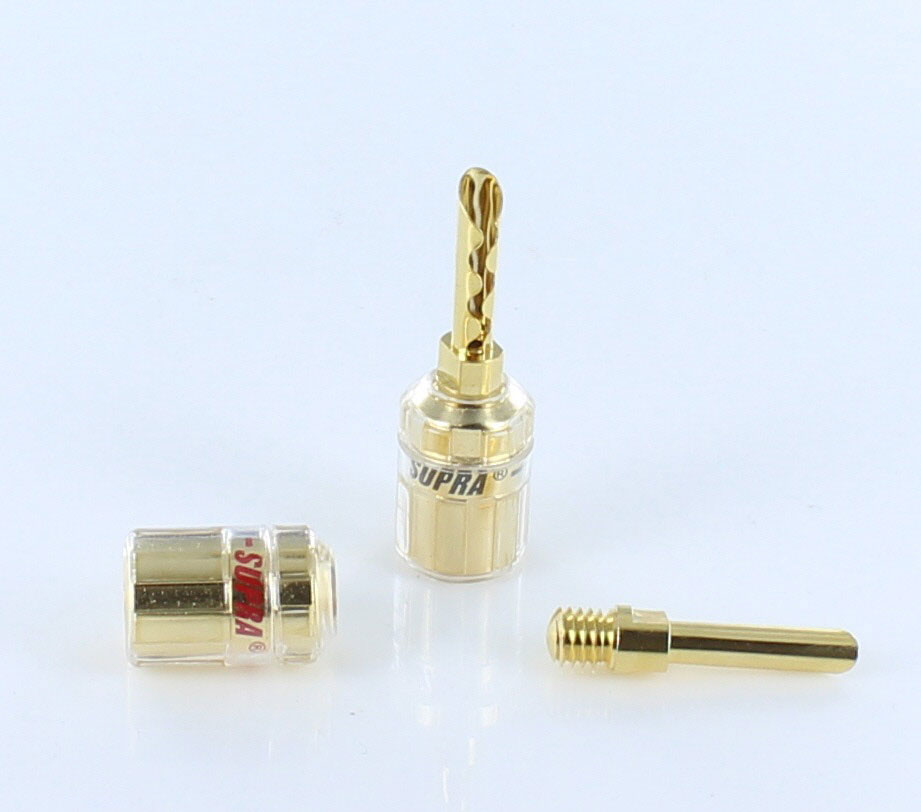

This combination connector comprises two parts: a connector body with a M6 thread that attach to the cable in two ways; straight or 90°, and contact part with M6 thread that fits the connector body. The contact part may be either the optional Fork, the BFA/Banana pin or a combination of both depending on access angle to the speaker terminal.
Accepts up to 10awg wire.
Quantity per package 1 pair Contact BFA/Banana Contakt material 24K goldplated Copper Contact fixing Expanding banana pin or lockable BFA, and M6 thread fits the Connector Body M6 Cable connection Threaded clamping force in Connector Body, straight or 90° Maximal cable crossection area 6.0 / 10 mm2 / AWG External size (Ø x l) 13 x 20.5 mm Polarity identification Red / Black
