Satori TW29BNWG-8 Beryllium Dome Tweeter with Waveguide

Satori TW29BNWG-8 Beryllium Dome Tweeter with Waveguide -8 ohm- 94 dB

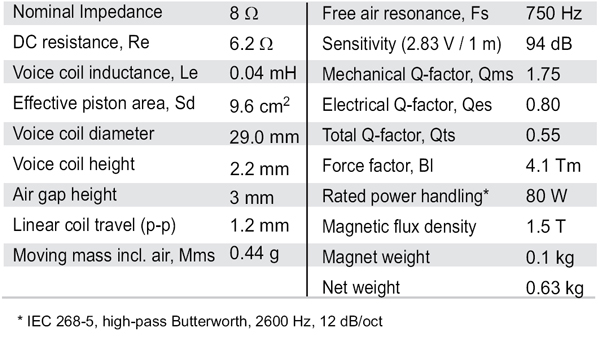

Spec Sheet PDF

The new Satori Beryllium dome tweeter has arrived! Beryllium is known for its open and spatial sound, often described as holographic. The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real, positive difference providing a experience unlike all other dome materials.

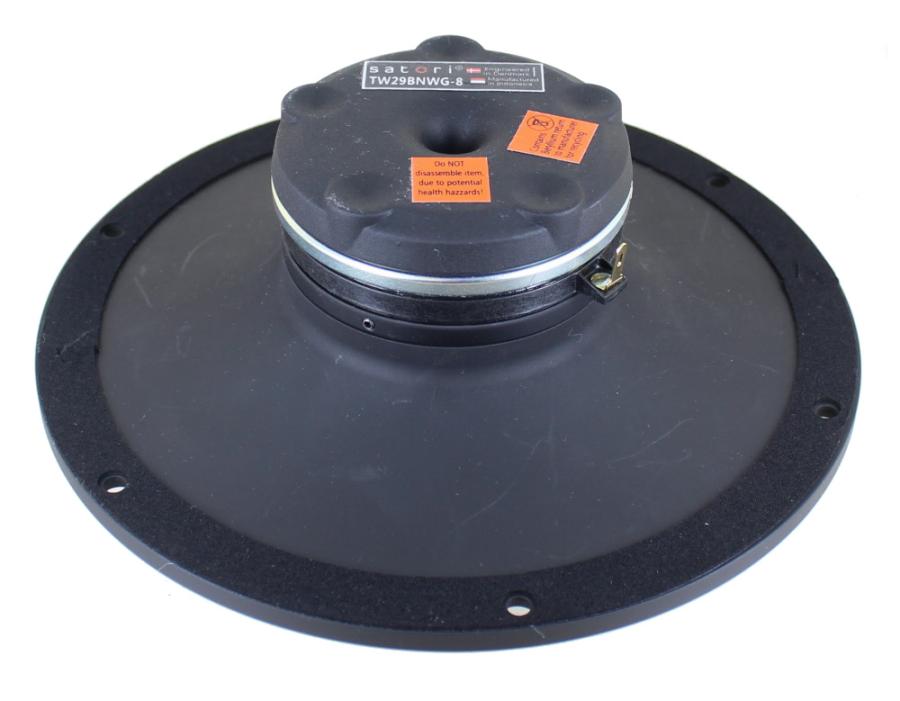

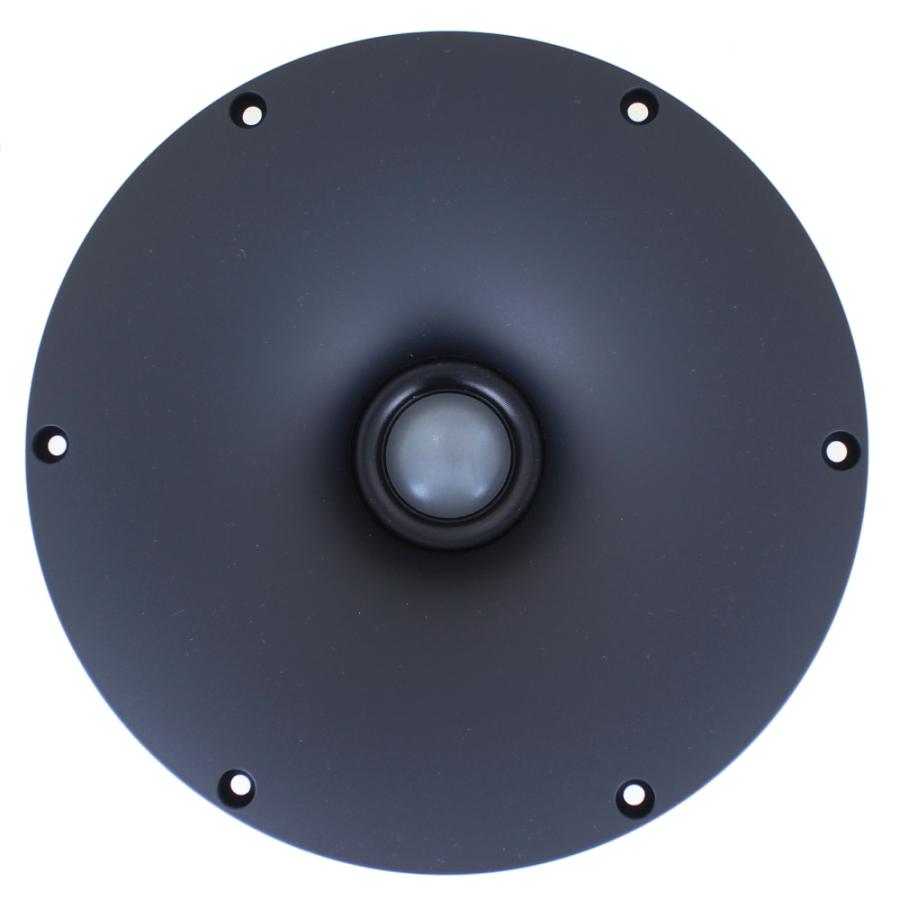

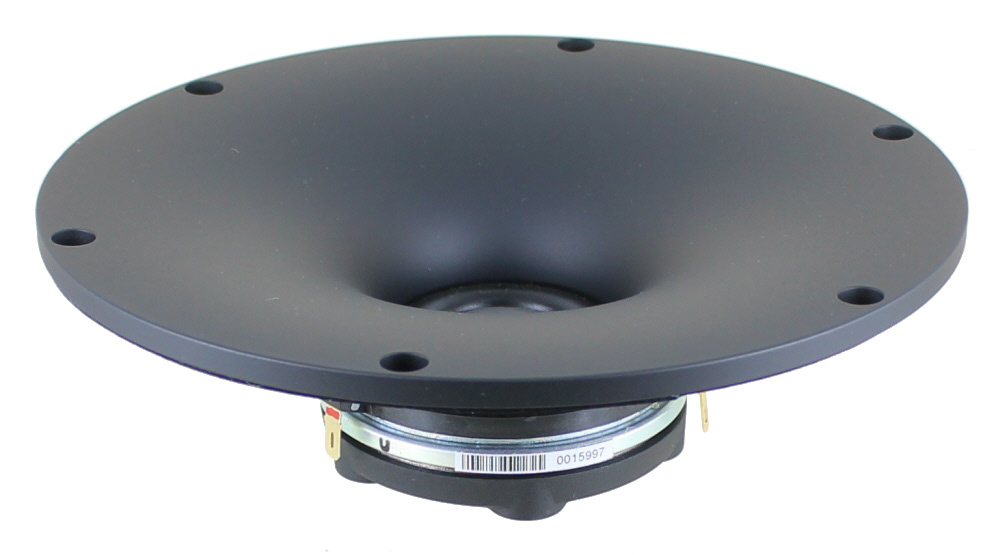

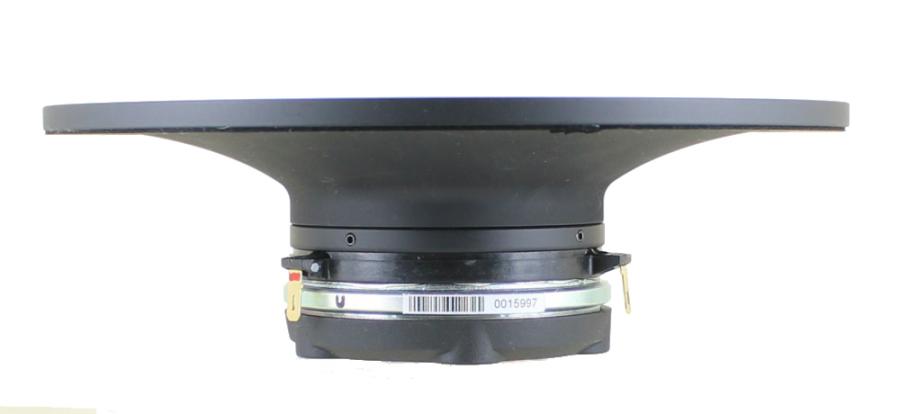

This is the Satori TW29BN-B Beryllium Dome Tweeter 8 ohm loaded in an aluminum waveguide. This model features a horn loaded front waveguide, a beryllium dome and a neodymium magnet assembly providing a broad frequency range with controlled directivity. Very high output of 94 dB. 8 ohm impedance, overall flange diameter 170mm.

Test Bench Review of TW29BNWG

• Beryllium dome for non-resonant high frequency extension
• Dual balanced compression chambers for improved dynamics
• Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
• High saturation neodymium motor system with T-shaped pole piece for lower distortion
• Non-reflective cast aluminium chamber with optimized damping for improved dynamics

Additional Features:

• Shallow flow optimized magnet structure for optimum coupling to rear chamber
• CCAW voice coil for low moving mass
• Long life silver lead wires
• Low resonance frequency for extended range
• Solid aluminium waveguide
• Controlled directivity
• Adapter ring for bolt-less mounting to driver
