ScanSpeak Illuminator D3004/6040-00 Beryllium Dome Tweeter - Each

Discontinued. No Longer Available.

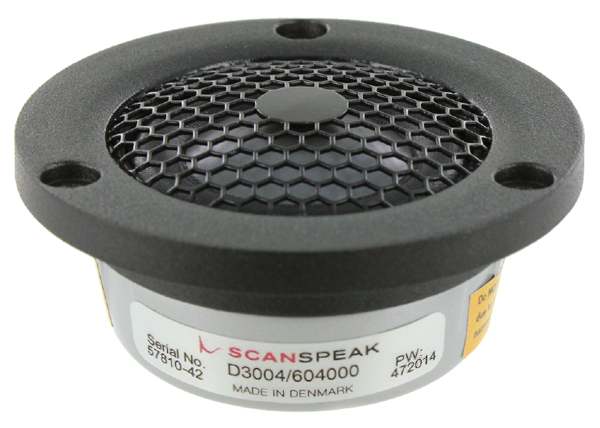

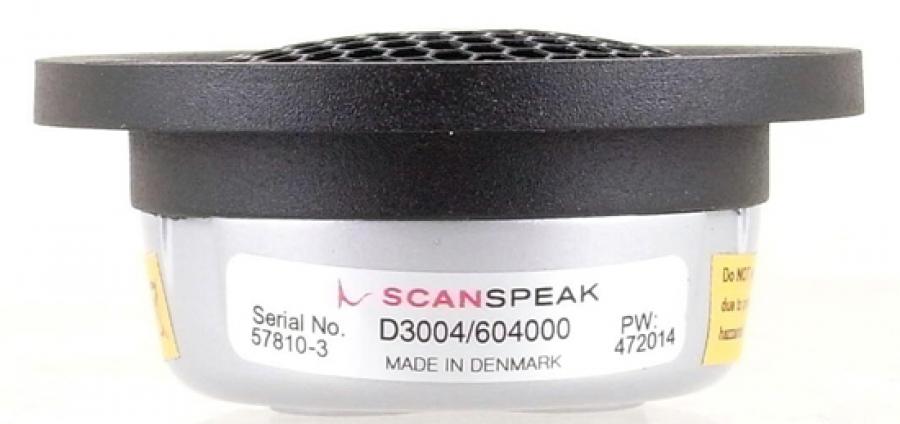

ScanSpeak Illuminator D3004/6040-00 99% Pure Beryllium Dome Tweeter- 62mm - 4 ohm

The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations.

Illuminator tweeters continue on with the heritage of the renowned Revelator series. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion.

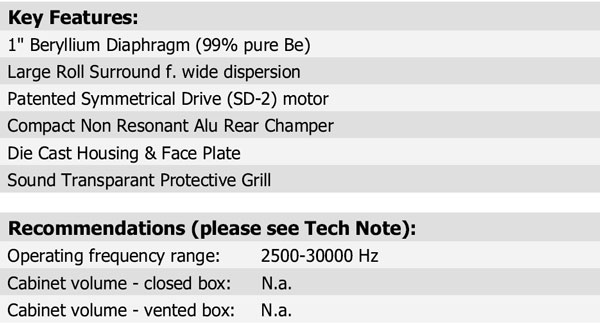

• 1" Beryllium Diaphragm (99% pure Be)
• High Efficiency (90.9dB) and Low Resonance (750Hz)
• Patented Symmetrical Drive (SD-2) motor
• Shallow Non Resonant Alu Rear Chamber
• Neodymium Magnet
• Aluminum Face Plate and Chamber

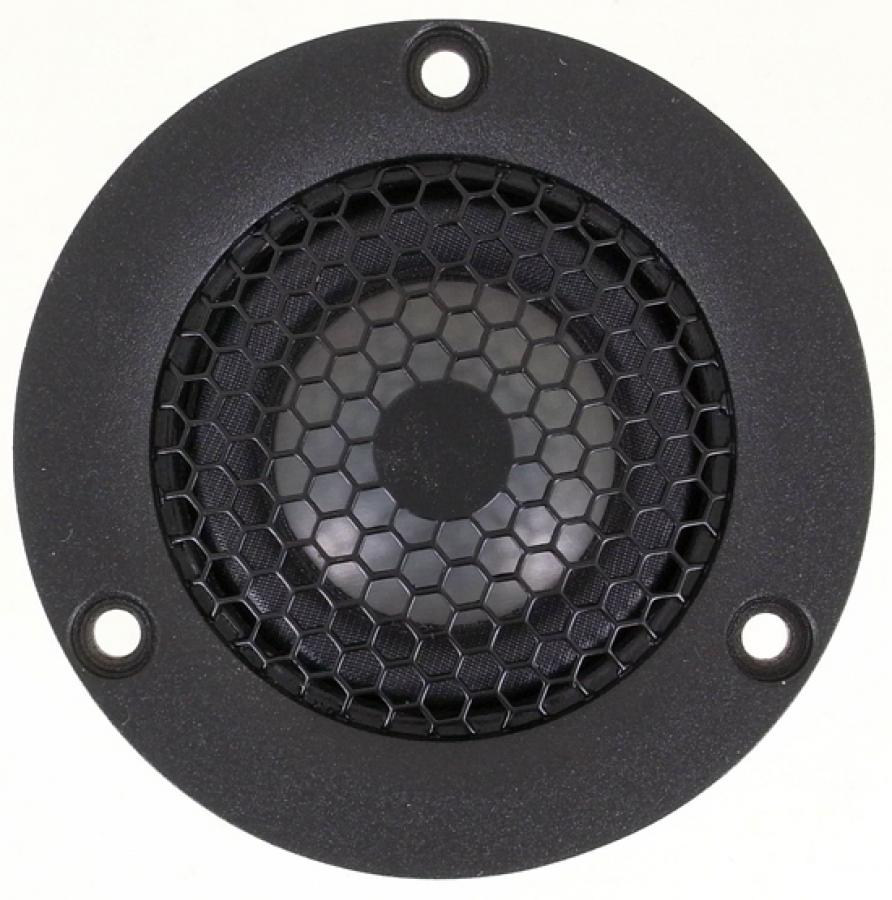

• Sound Transparant Protective Grill
• 61.9mm (2.44") diameter flange with 21.5mm (.85") depth
• Excellent choice for both home hi-fi and autosound applications

This 1” compact Illuminator beryllium tweeter is an example of a big sound in a small body. As beryllium is a material characterised by great stiffness, light weight and high damping, the beryllium diaphragm offers all the properties required to reproduce excellent sound. Indeed the D3004/604000 sounds fantastic. It has very low distortion and a distinct clarity that brings out the best in all types of music. Some have described the sound as holographic.

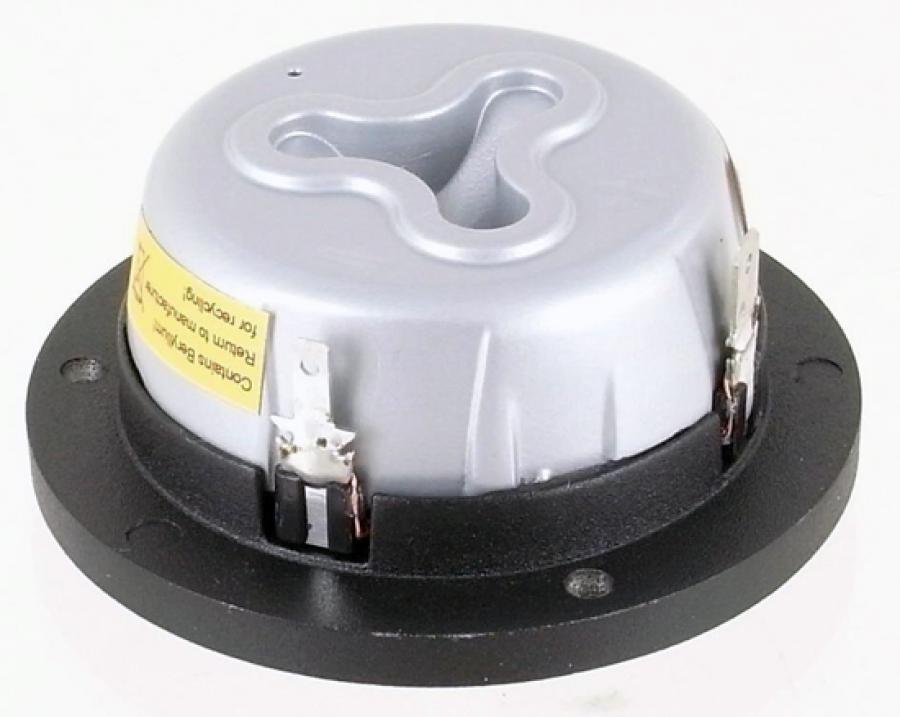

The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. D3004-604000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.

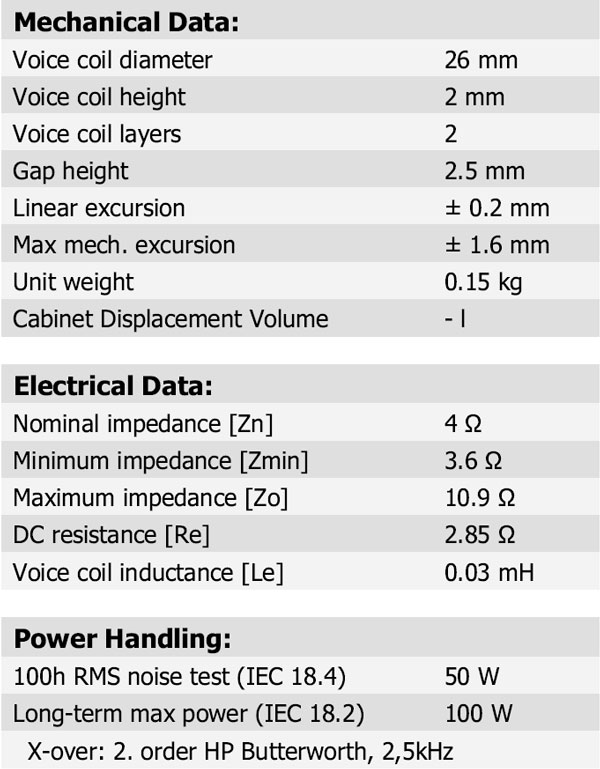

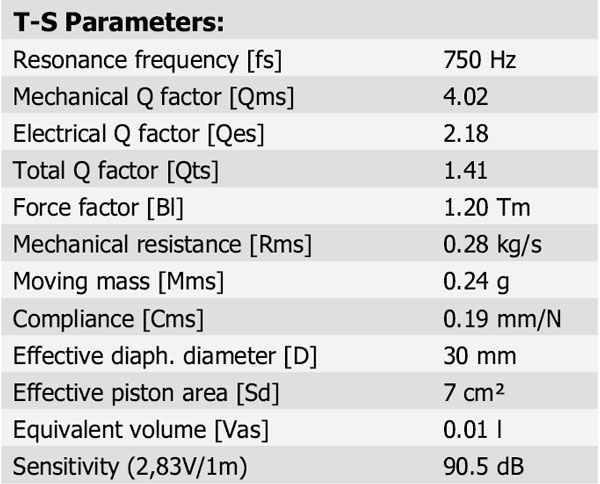

Specification sheet pdf file download.
