Fostex BK-16 Folded Horn Cabinet - Each

Manufacturer: Fostex

Be the first to review this product

Product ID: bk16-flat

$298.00

Product is out of stock

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

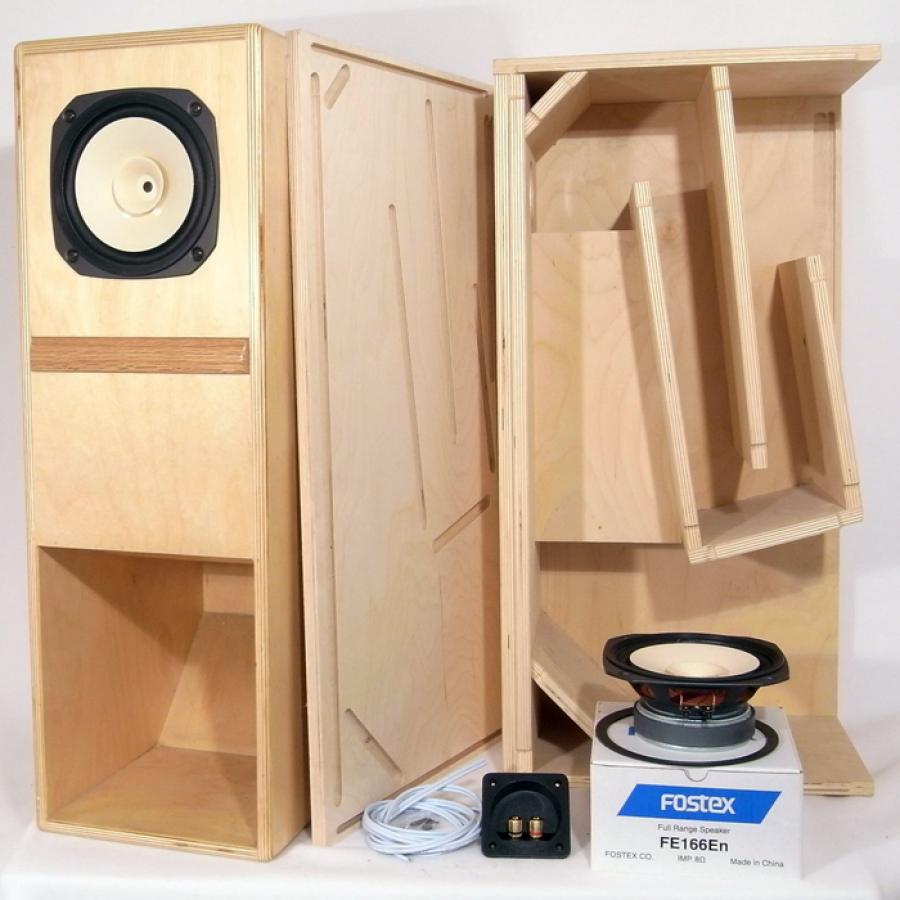

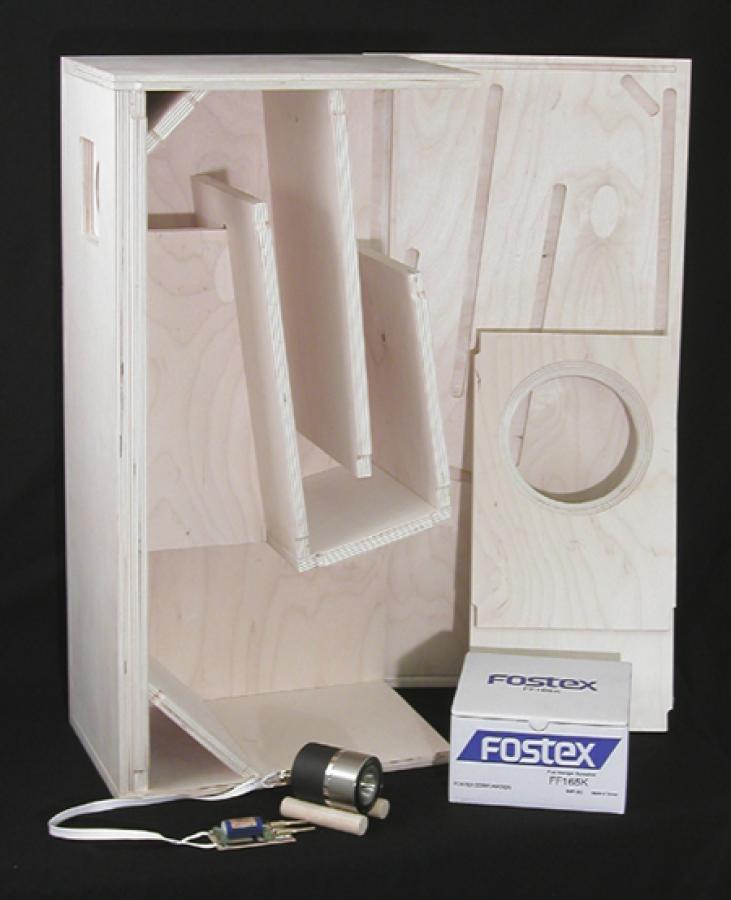

BK-16 flat pack cabinets

Discontinued

BK-16 Folded Horn Cabinet for ~ 6" Full Range Drivers - Each

Also available as complete BK-16 Kit PAIR here

Completed cabinets measure 29” tall x 9 3/4" wide, 14 3/4” deep
Unassembled and Unfinished
Drivers not included - Cabinet Only
5-11/16" driver through hole size (144.5mm)
5-5/8" maximum depth of driver this cabinet will accept (143mm)
Performs well with and fits the FE166NV2, FE168E Sigma (no longer available), FE168NS (no longer available), FF165K (no longer available), FE166En/NV (no longer available)
Full range drivers from other brands of similar size have also been used in this cabinet
Sold flat, you glue it together, sand it, round the corners if you want and finish it.
Make sure it is squared up before the glue dries!
Baltic Birch (9 layers, 11/16")
Cut on back for flush mount of DB-CUP or NB-CUP input cups
Updated and improved assembly instructions (PDF)

Markaudio drivers that fit the BK-16

Not rated yet

Perfect for podcasts

Reviewed by adevault@alumni.ufl.edu on 02/24/2018

This is my kitchen speaker, and I like it for podcasts. I power it with my iPhone 6S. The arrangement is super-simple, sufficient for a conversational volume, and puts out a nice clear sound. See https://youtu.be/LNOW6BLSftA

The kit requires some work. I planed and sanded some edges before glue-up. I also added some screws on the side, because I didn't have enough clamps. In the end, with a lacquer finish and wet-sanding, I was really pleased. Also the speaker should be broken in. I'd thought this was hogwash before, but I drove it for a few days with a heavy duty amplifier, it did make a noticeable and positive difference.

Great for entry Level audiophiles!

Reviewed by neutravlad on 09/20/2011

This is the step everyone has to make from conventional speaker "boxes". These babies deliver great performance for the price, probably the best. Four recommendations though: 1. Put two pieces of wood on the first curve so it's not that sudden; 2. Get phase plugs; 3. Dump the camera with stuffing; 4. Buy 6 speaker cones :)
