Mundorf AMT17D2.2 Dipole Air Motion Tweeter (AMT)

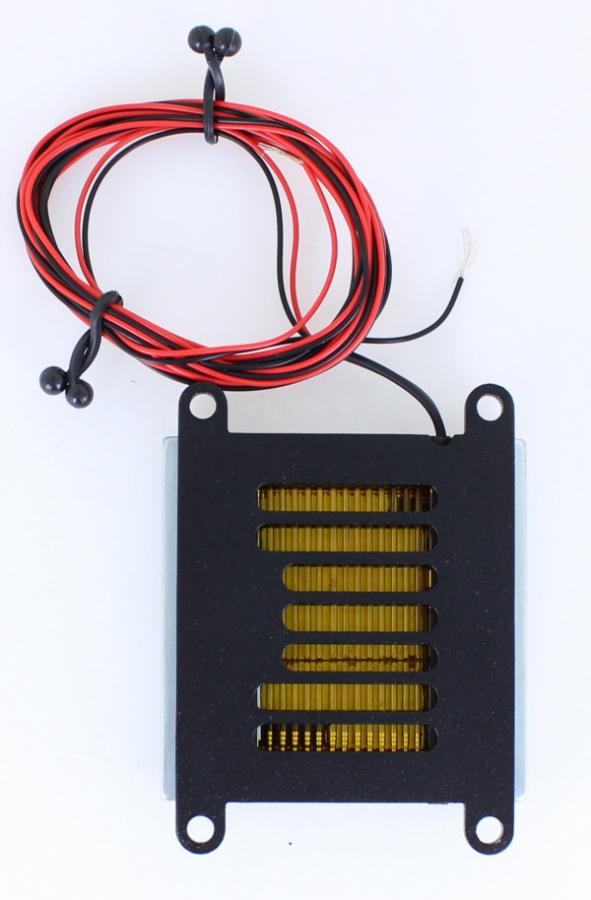

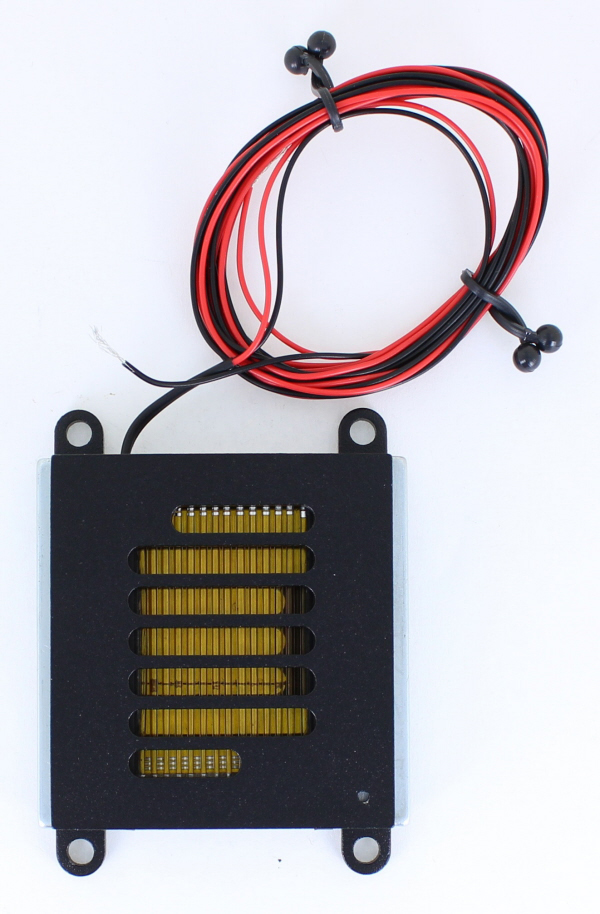

Mundorf AMT17D2.2 DIPOLE AMT Tweeter

Useable as a super tweeter for existing speaker boxes or for combination with full range drivers. · No baffle required · Frequency range up to 35 kHz. Dipole tweeters improve directivity by producing sound from both the front and the open back of the driver, with the waves out of phase with each other.

Spec Sheet PDF

Free-standing Dipole. Usable as a super tweeter for existing speaker systems or as free standing tweeter in dipole systems. • No baffle required

• 60 x 60mm Square Flange
• 4 ohms
• 90 dB / 1M / 2.83V
• 1,300 to 31,000Hz

See pdf for waterfall plot, distortion curves and step response. Mundorf offers today's largest selection of Air Motion Transformer (AMT) tweeters worldwide. The different lines were developed for certain applications and requirements. All Mundorf HiFi AMT tweeters have two superior key properties: excellent transient response and outstanding low distortion ratio. The differences lie mainly in their frequency ranges, sound pressure levels and dispersion angles. The dipole AMT models come in two lines. One line is optimized for a free-standing installation. Their transient response is very similar to a woofer's transient response when mounted in an open baffle. Ideally suited for such concepts are the AMT17D, AMT23D, AMT25D and AMT27D tweeters. A second line of dipole AMT's is optimized for matching open-baffle concepts perfectly. These models include the AMT23D6.1, AMT25D6.1 and AMT27D6.1. Dipole AMT17D has also proved itself as an outstanding super tweeter, which can easily be matched with any given speaker. Super tweeter mounting stands are also available.
