SB Audience OB3 Open Baffle 3-Way with 15" Woofer - PAIRDesigned by Scott Hinson ~ thank you!
Madisound is pleased to offer an easy to build and straight forward open baffle 3-way kit utilizing the new SB Audience line of drivers.
With the introduction of the
Bianco-150B350 15" open baffle woofer, it made perfect sense to work it into a passive design geared towards DIY speaker building enthusiasts. The Nero-6MRN150D 6" midrange is an exciting driver, straddling that line between home hi-fi and pro-sound. With an extremely powerful neo magnet, advanced motor design, and high quality material build, the resulting driver stands alone from the crowd. Rounding out the top end is the Bianco 44CD-PK PEEK diaphragm tweeter mounted in the H250 horn, offering both a smooth response and markedly low distortion.
Full documentation and listening notes on this design can be found here.
Specifications
- 3-Way Floor Standing Open Baffle
- Cabinet Dimensions: 39" tall x 24" wide
- Sensitivity: 85 db
- Impedance: 8 ohm
- Frequency Response: 50 Hz (-3db) to 20 kHz
- Crossover Frequencies: 300 Hz / 2.1 kHz
- Recommended Amplifier Power: 50W - 250W+
Each OB3 Kit Includes:

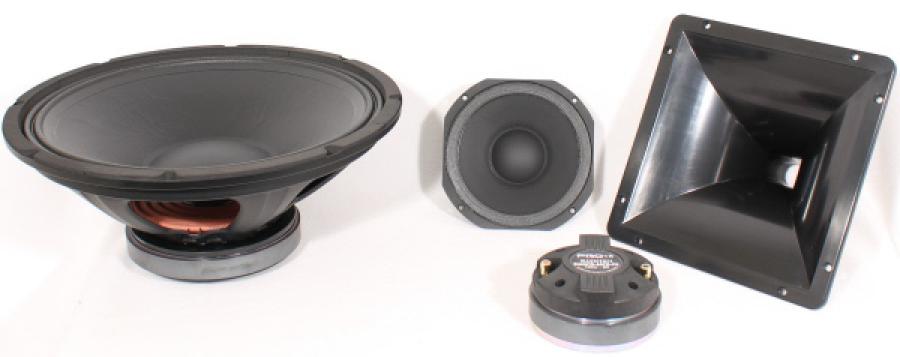

- (2) Bianco 44CD-PK 1" Compression Tweeters
- (2) H250 250mm x 250mm Horns
- (2) Nero-6MRN150D 6" Midrange Drivers
- (2) Bianco-150B350 15" Open Baffle Woofers
- (2) Professionally Assembled Crossovers (details below)
- Price shown includes a 10% discount on all drivers.
Other parts to consider purchasing for this build:
- (20ft) Supra Classic 2.5 - 13 awg tinned OFC speaker wire - connect crossovers to drivers
- (4) QC205R - for + woofer & + midrange tabs
- (2) QC205B - for - woofer tabs
- (2) QC110B - for - midrange tabs
- (24) OXTNUT8-32 - mount tweeter horn & mids to baffle
- (16) OXTNUT10-24 - mount woofers to baffle
- (8) M6 thread x 16mm long screws - mount tweeter to horn
Assembled Crossover Information
Each crossover is professionally assembled by Madisound on our silver tinned inlaid OFC copper circuit boards.
The series tweeter circuit utilizes ClarityCap CSA capacitors and doubled up Mundorf Mresist MOX 10W resistors. The series midrange circuit comes with Solen Fastcap caps, Sidewinder air core 16awg coils, and doubled up Mundorf Mresist MOX 10W resistors. The woofer section uses a Sledgehammer steel laminate 15awg coil for the large mH value along with a Sidewinder air core 16awg coil for the smaller one. Crossovers include hookup instructions. Available for separate purchase from the drop down menu.

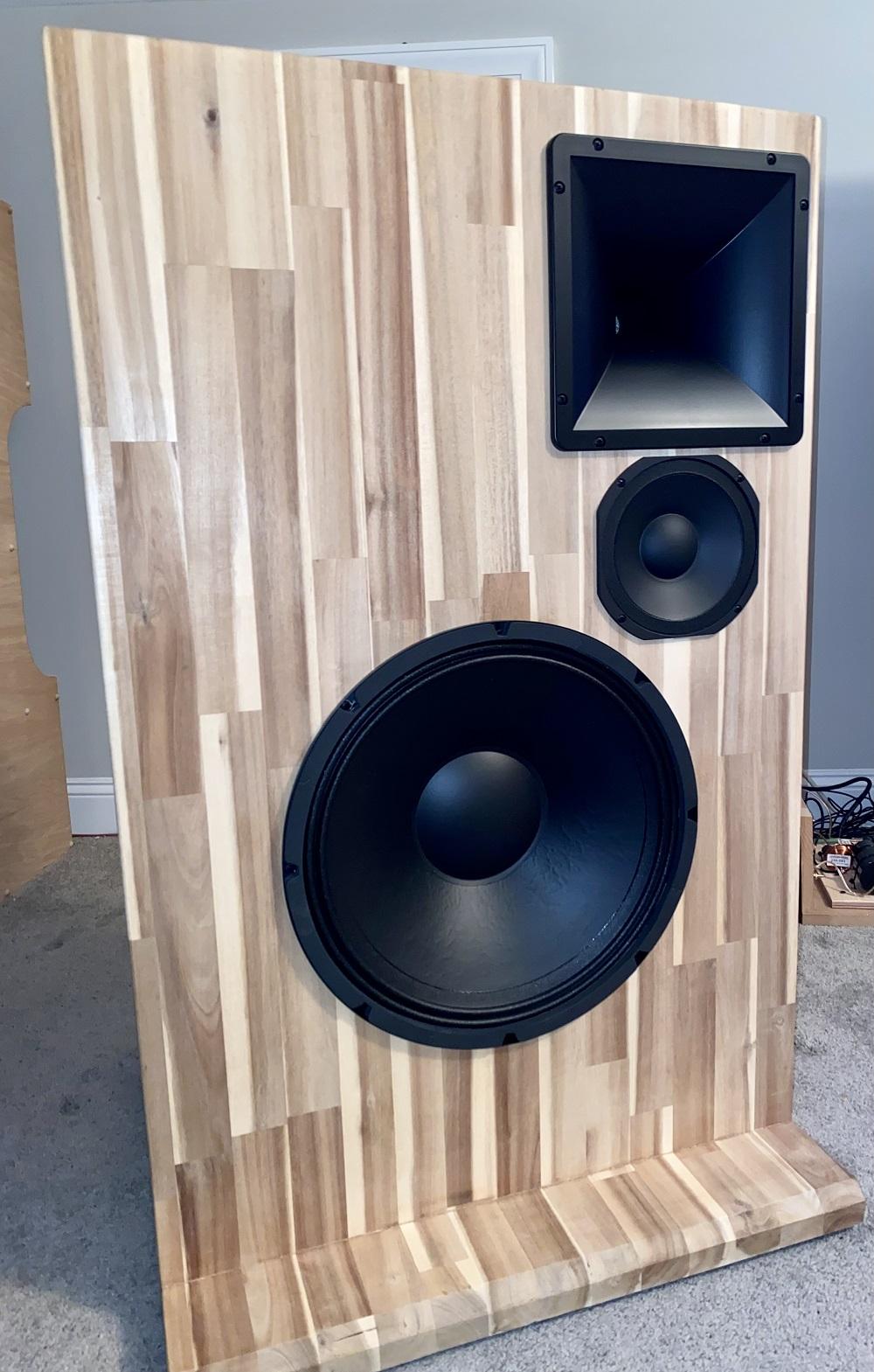

Pictures of Completed OB3 Speakers

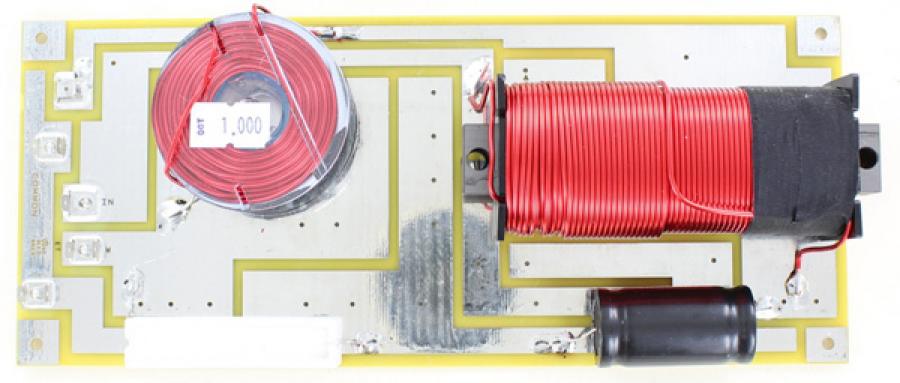

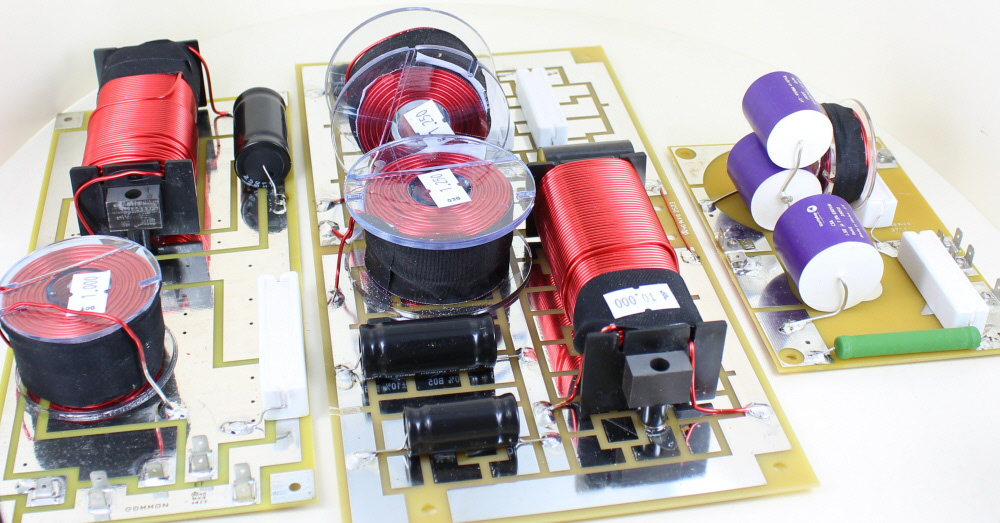

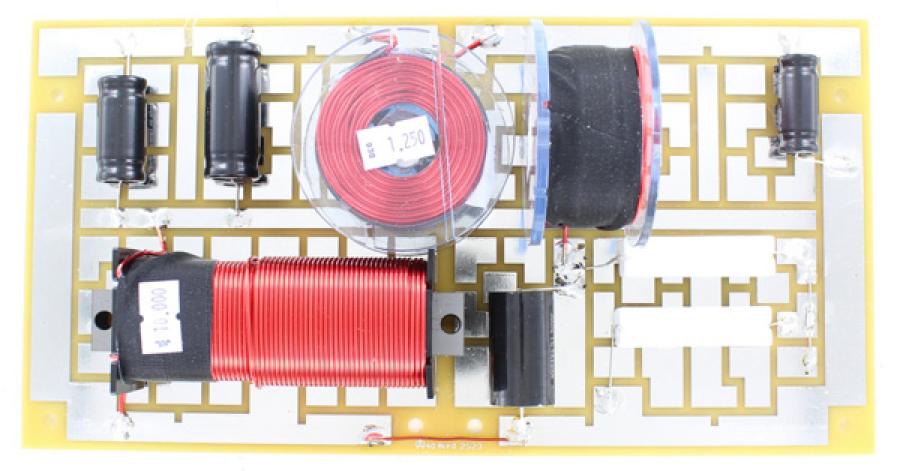

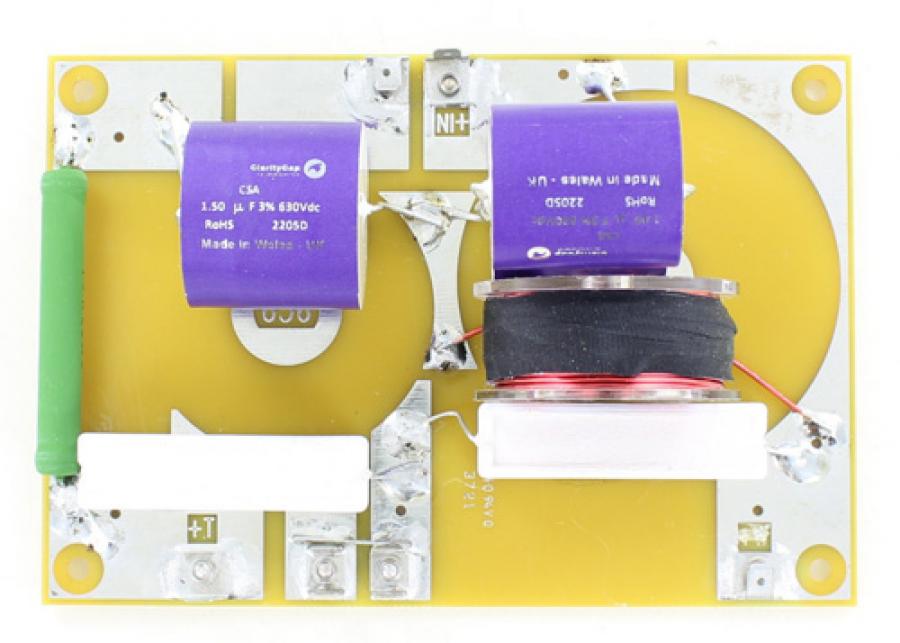

Madisound Professionally Assembled OB3 Crossovers
Bianco 44CD-PK 1" Compression Tweeter
Horn H250 250mm x 250mm
Nero-6MRN150D 6" Midrange
SB Audience Bianco-150B350 15" Open Baffle Woofer
