Propeller Post 16mm with Tool, Set of 4

Discontinued. No Longer Available.

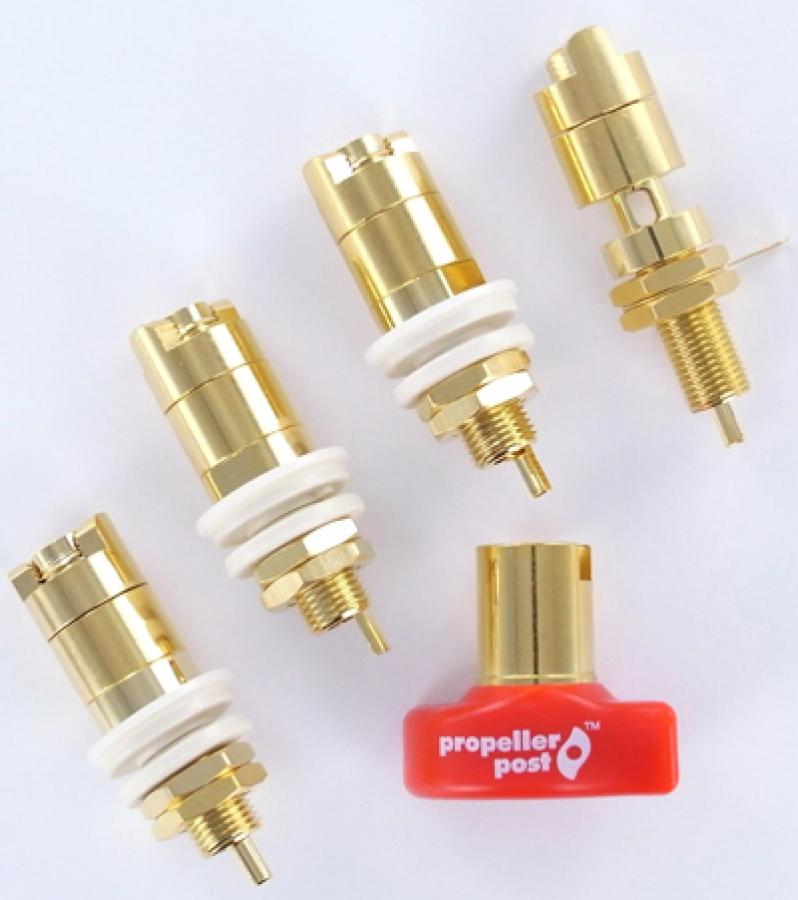

Propeller Post 16mm Tellurium Copper with Gold Plating - Set of 4 with 1 tool

This set of Propeller Posts comes with four posts and one tool. This set is usefull if you want to get the posts closer together or if you want to remove the ability of someone to loosen the posts without the tool.

• Four posts and one tool
• Tellurium Copper with Gold Plate
• 16.5mm long threaded shaft (0.65")
• Use with banana, spade(6.5mm) or cable entry (2.9mm x 3.9mm opening)
• Connect from inside with solder tab or direct solder to post
• Comes with 4 solder tabs (3.4mm), 8 gold plated brass nuts, 8 shoulder washers, 4 flat washers
• Use a 11mm wrench to hold post during mounting (7/16")
• Use a 5/16" diameter hole for mounting (8mm)
• Use a 3/8" diameter hole in sheet metal when using the shoulder washers (9.5mm)
• The shoulder washers are used when mounting into a steel plate to isolate the post from the plate

Tellurium Copper is 99.5% Copper (Cu) and 0.5% Tellurium (Te) along with trace amounts of Silver and Phosphorus. Tellurium is added to the copper to improve the metals machinability. Propeller posts are designed by Virtue Audio: www.virtueaudio.com.

Shoulder washer cut out drawing.

Shaft threading is M8 x 0.75

Flat washer is 18mm OD

Shoulder washers are 16.5mm OD and made for 9.25mm hole, one is notched
