ScanSpeak Illuminator D3004/6020-10 1" Tweeter Deep Chamber

Discontinued. Replaced by the D3004/6022-00.

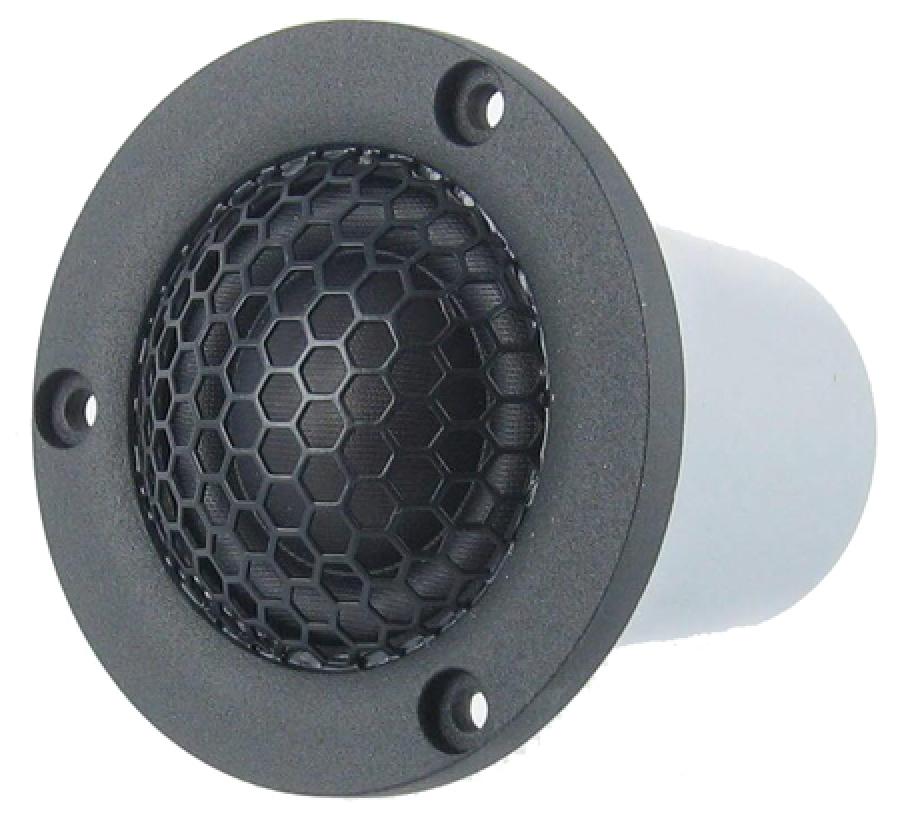

ScanSpeak Illuminator D3004/6020-10 1" Tweeter Deep Chamber- 62mm- 4 ohm

• 1" Textile Dome with Large Roll Surround for Wide Dispersion
• Deep Non Resonant Alu Rear Chamber
• Ring Neodymium Magnet
• Aluminum Face Plate and Chamber
• Sound Transparant Protective Grill

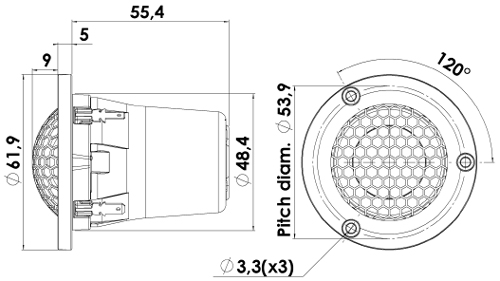

• 61.9mm (2.44") diameter flange with 55.4mm (2.18") depth
• Excellent choice for both home hi-fi and autosound applications where depth is not an issue

The Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. D3004-602010 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces where you have extra depth. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.
