SEAS Prestige L18RNX/P (H1224) 7" Aluminum Cone Woofer

Manufacturer: Seas Prestige

Be the first to review this product

Product ID: h1224

$116.00

Product is out of stock

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

6.5" High Fidelity woofer with aluminum cone, phase plug, and an injection-molded metal chassis, intended for bass reflex and transmission line designs.

Discontinued. No longer available.

SEAS Prestige L18RNX/P (H1224) 7" Aluminum Cone Woofer

6.5” (176mm) High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs.

Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion assosiated with soft cones.
Large magnet system gives good transient response, and the bumped back plate together with the very long, and light weight copper clad aluminum voice coil allow for extreme coil excursion with low distortion.
Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

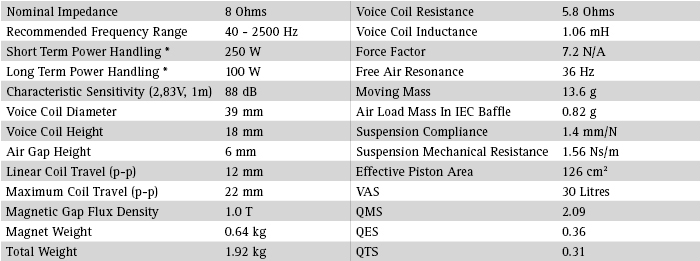

Spec sheet: Seas Prestige L18RNX/P H1224 Woofer

Enclosure suggestions:

Vented box of 0.5 cubic foot with a 2" diameter vent by 6.4" long for an F3 of 49Hz.
Vented box of 0.6 cubic foot with a 2" diameter vent by 5.1" long for an F3 of 45Hz.
Vented box of 0.7 cubic foot with a 2" diameter vent by 4.8" long for an F3 of 43Hz.

The SEAS Prestige L18RNX/P represents the pinnacle of woofer design. Its precision-machined aluminum cone and advanced motor system deliver exceptional midrange clarity and controlled bass response, making it ideal for high-end two-way and three-way systems.
