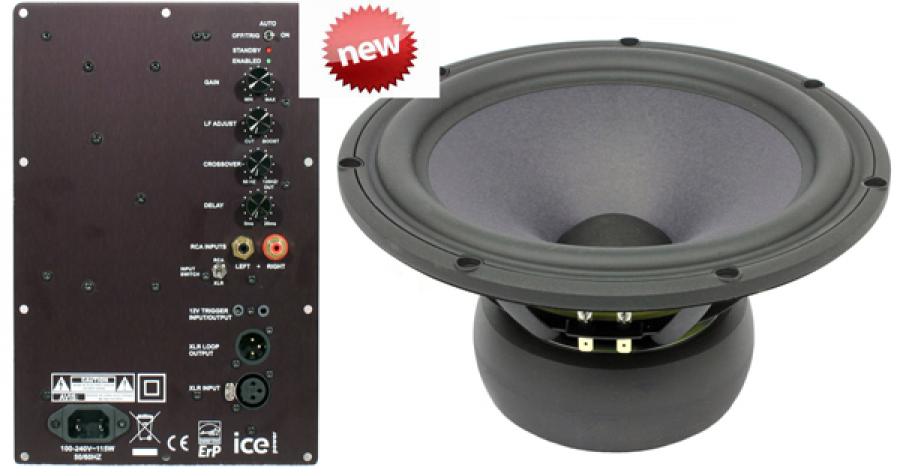

Scan-Speak 26W Revelator 10" Subwoofer Kit
Audiophile performance at an affordable price!
This kit package combines the Scan-speak 26W/8861T Paper Cone Revelator Woofer and the Speaker Power SP1-300 Amp!
This amplifier can add up to 12 dB of boost!
This robust 10" woofer was designed to provide deep and accurate bass in a small enclosure. This woofer features a 2" voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max ensures good linear travel.
We suggest a 2.5 cubic foot enclosure with a 2"Ø double-flared vent 6.5" long. Fb=21 Hz, F3= 33Hz.
External dimensions 26" H x 16.5" W x 10" D.
Also consider a Passive Radiator enclosure with the 26W Passive Radiator.
- 2.5 cubic foot with a single 26W PR for F3 of 30 Hz
- 1.5 cf3 F3= 37 Hz
- 1.0 cf3 slight rise on bottom F3 of 44 Hz
Scan-Speak subwoofers make great replacements for old drivers in a variety of audio gear and are also fantastic for new designs. Hi-tech fiberglass/ paper cones combine natural warmth and sound quality with superb detail. Large vented magnet assemblies and extended voice coils enable long-throw performance and strong bass. These versatile subs are also rugged enough to be used in dipole and automotive infinite baffle applications.
Blending the 26W Kit into your stereo system is a breeze thanks to the Speaker Power line of subwoofer plate amplifiers.
Speaker Power Amplifiers
We've paired the 26W woofer with the new SpeakerPower Subwoofer amplifiers made in California USA. The SP1-300 will produce a clean, solid 150 watts to drive your 26W Revelator.
Features include:
- Switchable ON-Auto-OFF/12V trigger.
- Auto on with signal applied
- 12V trigger turn on.
- 3.5mm minijack input and output
- Rotary controls: Gain, LF Adjust, Crossover, Delay
- Inputs: 2 x RCA summing, XLR in and out
Since 2002, SpeakerPower has been helping loudspeaker manufacturers become powered speaker manufacturers. We proudly count many of the industry's leading names among our customers. Our product line has expanded over the years to include the highest power amplifier modules available, full-featured remote control and monitoring, and digital audio networking. In the years to come, we are committed to meeting the needs of our customers for reliable, cutting edge products.
Why use SpeakerPower?
There are many unique benefits to working with SpeakerPower:
- Designed, assembled and tested in Santa Ana California. The 2400W-6000W amplifiers are made entirely with local vendors and qualify for MADE IN USA.
- Lead times are short. Amplifiers are built to order as you need them. Quantity commitments are small.
- Custom faceplates, silkscreens and other features are easily accommodated.
- Some models have UL/CSA approval as a standalone product. This means you don't have to pay for an expensive UL investigation, quarterly inspections of your manufacturing, calibration of test equipment etc etc. The combination cUL mark is already screened on the faceplate.
- SpeakerPower has over 30 years experience designing and manufacturing loudspeakers and amplifiers for some of the biggest names in the business.
So while piecing together your own amp may appear to be less expensive, when you consider the total cost of time to market, UL/CSA, inventory, engineering etc you will find the SpeakerPower turnkey solution to be very competitive.
