SB Acoustics Bromo 2-Way Speaker Kit - New Cabinets Available!
Overview
Choose from High Gloss Black or High Gloss Ebony
We have a great deal on cabinets for the Bromo speaker kit. These cabinets were made by SB for the now retired Eka speaker kit - which happen to spec out perfect for the even better Bromo design. These have high gloss finish, pre-installed port tubes, dual binding post input cups, internal damping material, and grill covers.
7.87" wide x 13.39" tall x 13" deep (w/o grill cover)
Add these to your order from the drop down menu. See pictures and read more details at bottom of this page.
SB Acoustics Bromo 2-Way Speaker Kit - Pair
Bromo is taken from an active volcano in East Java, Indonesia. The name Bromo is derived from a word in Javanese: pronunciation of Brahma, The Hindu creator of God. It is a 2-way ported speaker with hard material drivers including the SB17CAC35-4 woofer. Ceramic provides a very hard and robust surface with improved sonic properties and cosmetic appearance. The SB26CDC-C000-4 tweeter combines the exceptional detail of a metal dome with the smoothness and non-fatiguing characteristic of ceramic. Experience superb high-frequency extension and authoritative mid-bass reproduction.
The drivers are known for very high performance, low distortion and unique price-performance ratio. The NBAC (aluminum) mid/woofers and CAC (ceramic) woofers can be both used with the same crossover designed for this kit. Tweeters ADC (aluminum) and CDC (ceramic) are also interchangeable. Though the specs are similar, both setups are audibly different. The ceramic set is subjective step up form a relatively small difference in price.
This is a hard cone/dome kit but without the typical ‘issues’ as audible breakups of the mid-woofer and the tweeter never get too harsh for the ears. The speaker is detailed and more ‘punchy’ than what was expected from this cabinet size, while displaying a noticable lack of coloration. A demo was done at Axpona Show 2019 & 2023 in Chicago and we received huge positive feedback.
SB Acoustics has developed, built, tested, listened, and are proud of this kits performance. All development details are available on the SB Acoustics website.

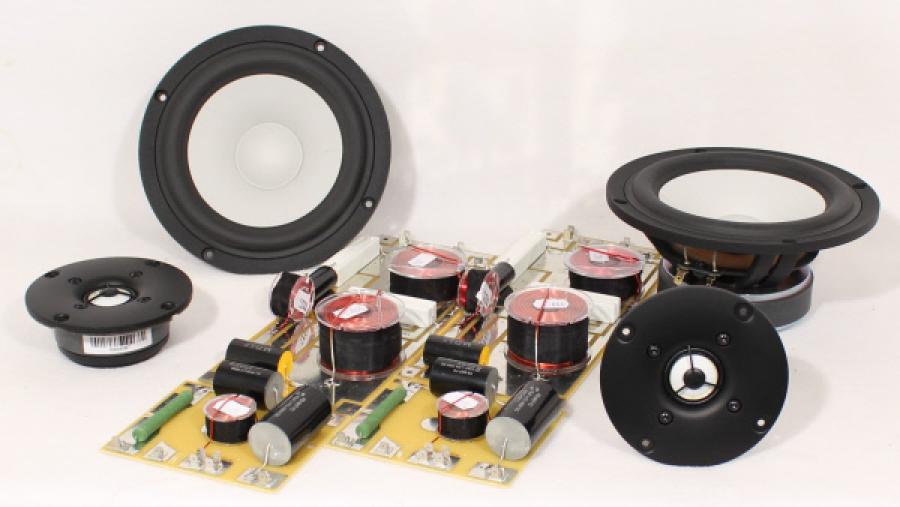

Each Bromo Kit Includes:
- (2) SB Acoustics SB17CAC35-4 6" ceramic woofer- 4 ohms
- (2) SB Acoustics SB26CDC-C000-4 Alum-Ceram Dome Tweeter
- (2) Professionally assembled crossovers

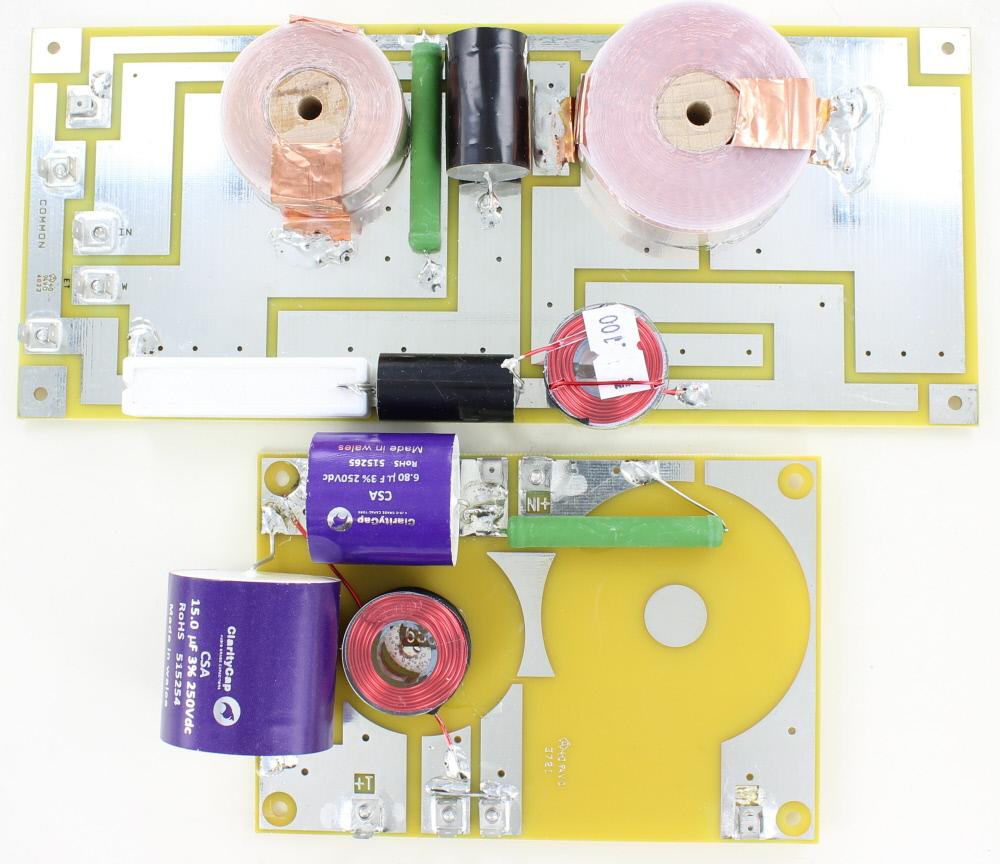

Madisound is offering this kit with two crossover series-component upgrade options. Higher-end parts can result in improved transparency and reduced insertion losses.

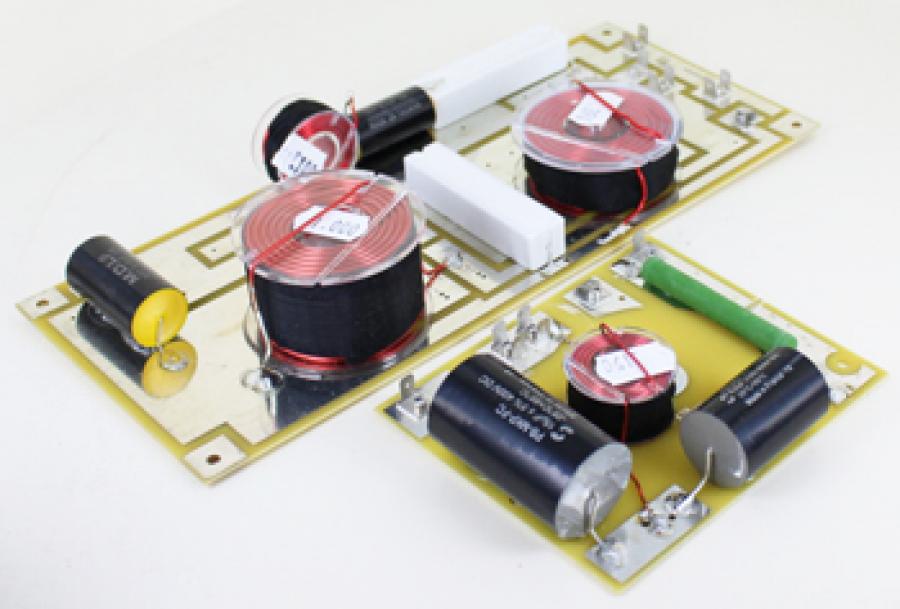

- Sidewinder 16awg air core inductors and Solen CP Fastcap caps - standard
- Sidewinder 16awg air core inductors and Clarity CSA caps - upgrade
- Mundorf Copper Foil 16awg air core inductors and Solen CP Fastcap caps - upgrade

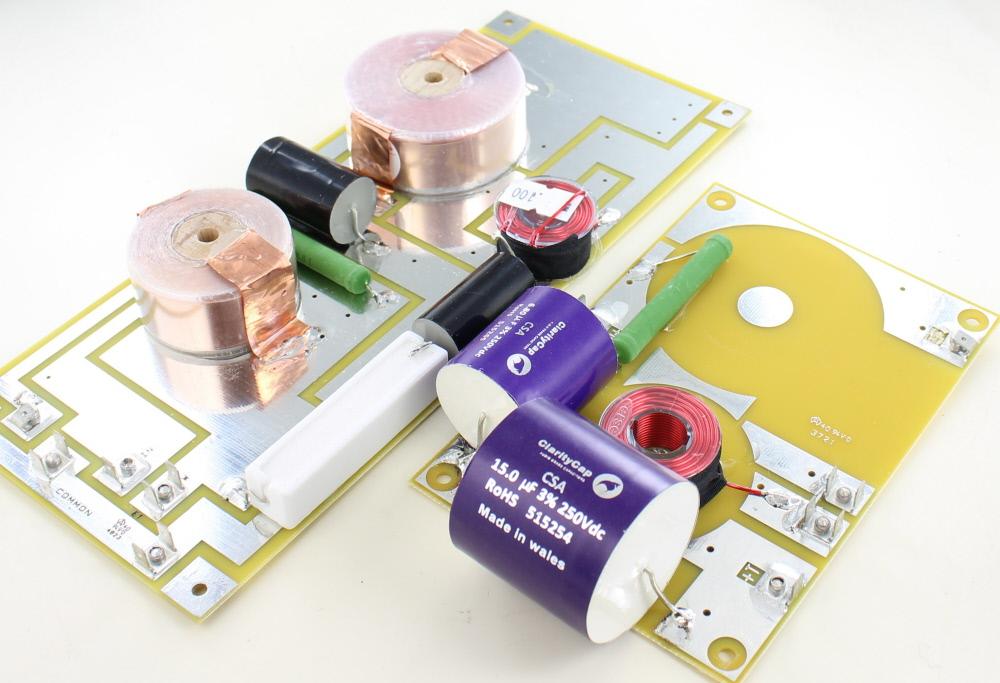

- Mundorf Copper Foil 16awg air core inductors and Clarity CSA caps - double upgrade
Recommended Enclosure:
- 14.17" tall x 7.87" wide x 12.28" deep
- 0.5 cf3 with a 2" x 6" straight vent or 2" x 7 " Flared Port Tube Kit (adjust cutout and bracing accordingly) for an F3 of 44Hz
- Consider using the Goldwood PT-F415 1.5" x 4" vent (No significant change in response, F3 of 47Hz)
Special Offer Cabinet Pictures (protective film is still on the cabinets in the pictures)
When ordering these cabinets with your Bromo kit, the only other parts you need for a full assembly are mounting screws and internal speaker wire. Consider picking up (16pcs) OXSOCKET8x1 and (8ft) Supra Classic 1.6 15awg speaker wire. If not soldering your connections, you'll need 2pcs red and 4pcs black of QC110 and 14pcs red and 12pcs black of QC205 Quick Connects. Order what you need individually or buy the package available from the drop down menu.
Real Ebony Veneer w/ High Gloss Finish
Black High Gloss Finish
