Satori Rinjani 2.5-Way Speaker Kit - Pair With Cabinets
Manufacturer: SB Acoustics
Product ID: Rinjani
Price:
$2,775.00
Satori Rinjani 2.5-Way Speaker Kit - Pair with Cabinets (high gloss black or white)
Beryllium Dome Tweeter Upgrade Now Available!
The name Rinjani is derived from the volcanic mountain in Lombok, Indonesia. Its astonishing natural beauty with sweeping panoramamic views inspired this design to deliver ultra transparent and dynamic sound reproduction.
This 2.5-way floor standing speaker kit utilizes top of the line of Satori drivers and was engineered by the Danish SB engineering team. The gently faceted top corner shape is specially designed to reduce high frequency diffraction and yields superb imaging qualities. 7⁰ inclined baffle slope helps time align the drivers, allowing for a relatively simple crossover design that delivers impressive sound staging. The wedge shaped inner rear walls behind the midwoofers reduce reflections, while the inclined bottom diminishes standing waves. Dual rear ports distribute port resonance evenly and eliminate potential noise during high output use.
The Rinjani kit comes with everything required to build a stereo pair of speakers. The cabinets are completely assembled and have a premium high gloss finish. The driver holes are precision cut for flush mounting of the tweeters and woofers. Dual rear ports are built in, and the back is cut for the included terminal plate with binding posts. Internal damping material and driver mounting hardware is included. The crossovers are even pre-wired and terminated with slide on quick connects for the drivers. The crossover input wires are pre-tinned for a quick solder to the binding posts. Assembly from there can be completed with a screwdriver or drill. Assembly instructions are included.
Also available with same design concept is the smaller brother Ara 2-way speaker kit.
Read an in depth review from audioXpress here.
Each Rinjani Kit Purchase Includes:
Rinjani Specifications & Features
Driver & Crossover Kit Package
Factory Assembled Crossover Detail
Jantzen caps and inductors.
Fully Assembled & Finished White High Gloss Cabinets
Faceted top corners are mirror imaged.
Satori TW29R Ring Dome Tweeter - Black
Satori TW29BN-B Beryllium Dome Tweeter
Satori MW16P-8 6" Egyptian Papyrus Cone Woofer
Beryllium Dome Tweeter Upgrade Now Available!
The name Rinjani is derived from the volcanic mountain in Lombok, Indonesia. Its astonishing natural beauty with sweeping panoramamic views inspired this design to deliver ultra transparent and dynamic sound reproduction.
This 2.5-way floor standing speaker kit utilizes top of the line of Satori drivers and was engineered by the Danish SB engineering team. The gently faceted top corner shape is specially designed to reduce high frequency diffraction and yields superb imaging qualities. 7⁰ inclined baffle slope helps time align the drivers, allowing for a relatively simple crossover design that delivers impressive sound staging. The wedge shaped inner rear walls behind the midwoofers reduce reflections, while the inclined bottom diminishes standing waves. Dual rear ports distribute port resonance evenly and eliminate potential noise during high output use.
The Rinjani kit comes with everything required to build a stereo pair of speakers. The cabinets are completely assembled and have a premium high gloss finish. The driver holes are precision cut for flush mounting of the tweeters and woofers. Dual rear ports are built in, and the back is cut for the included terminal plate with binding posts. Internal damping material and driver mounting hardware is included. The crossovers are even pre-wired and terminated with slide on quick connects for the drivers. The crossover input wires are pre-tinned for a quick solder to the binding posts. Assembly from there can be completed with a screwdriver or drill. Assembly instructions are included.
Also available with same design concept is the smaller brother Ara 2-way speaker kit.
Read an in depth review from audioXpress here.
Each Rinjani Kit Purchase Includes:
- (2) Satori TW29R Ring Dome Tweeters
- (4) Satori MW16P-8 6" Egyptian Papyrus Cone Woofers
- (2) Factory Assembled Crossovers
- (2) Fully Finished High Gloss White or High Gloss Black Cabinets
- Upgrade to Satori TW29BN-B Beryllium Dome Tweeter w/ corresponding crossover
- Upgrade series tweeter capacitor to ClarityCap CSA, ClarityCap PUR, Mundorf EVO-Oil or Mundorf EVO-Silver/Gold/Oil
- No Cabinets - drivers and crossovers only
Rinjani Specifications & Features

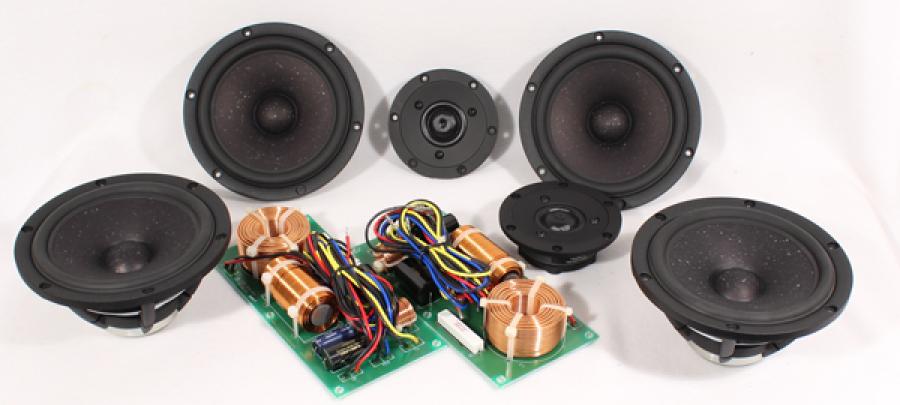

Driver & Crossover Kit Package
Factory Assembled Crossover Detail
Jantzen caps and inductors.

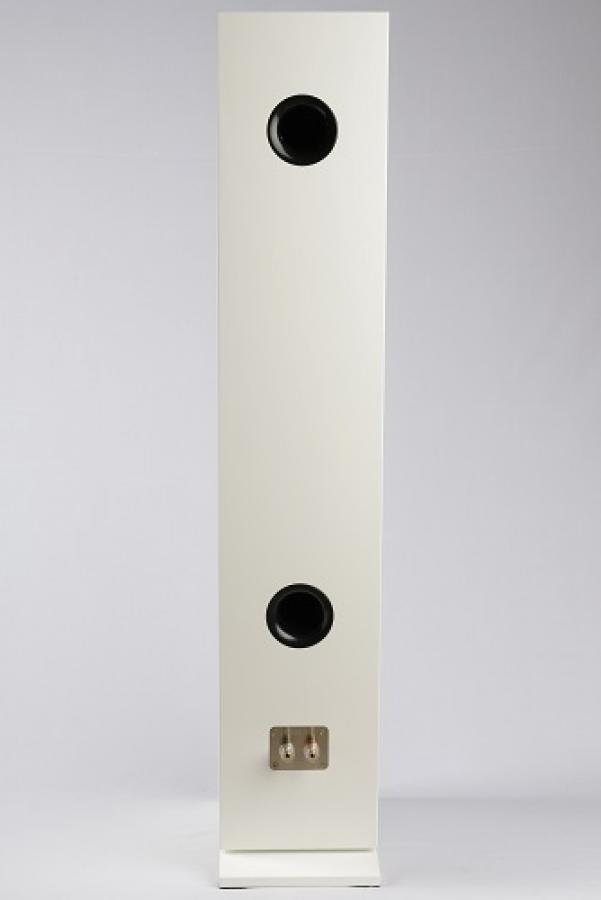

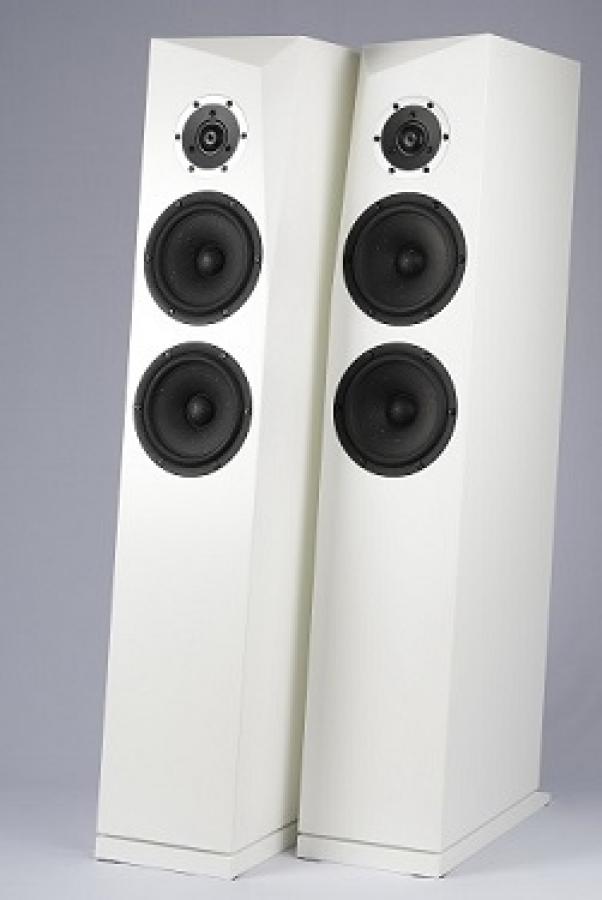

Fully Assembled & Finished White High Gloss Cabinets

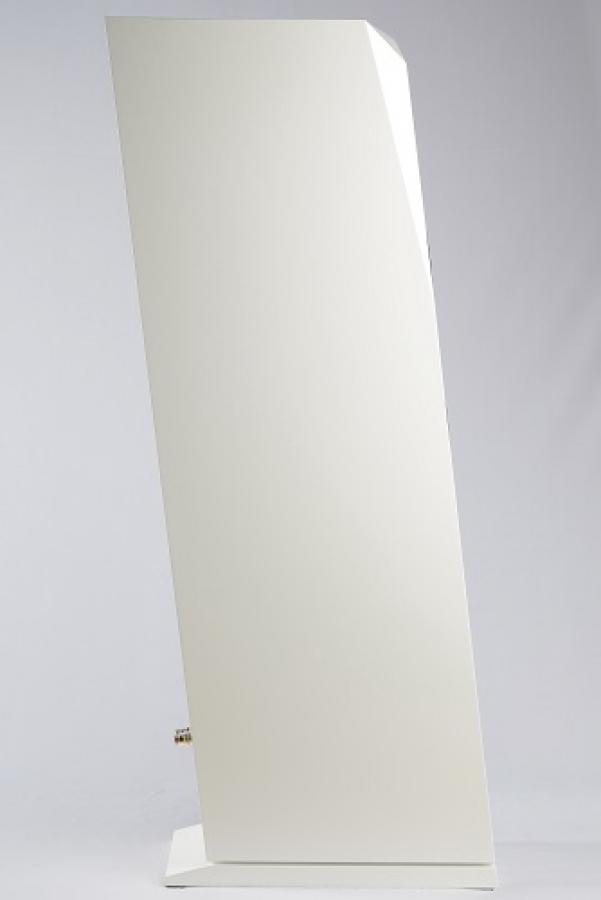

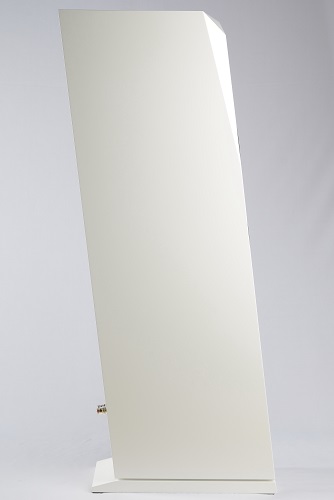

Faceted top corners are mirror imaged.
Satori TW29R Ring Dome Tweeter - Black
Satori TW29BN-B Beryllium Dome Tweeter
Satori MW16P-8 6" Egyptian Papyrus Cone Woofer
Cabinet Drawing
18mm MDF with ample internal bracing.
Satori Rinjani Product Page on SB Acoustics Website
