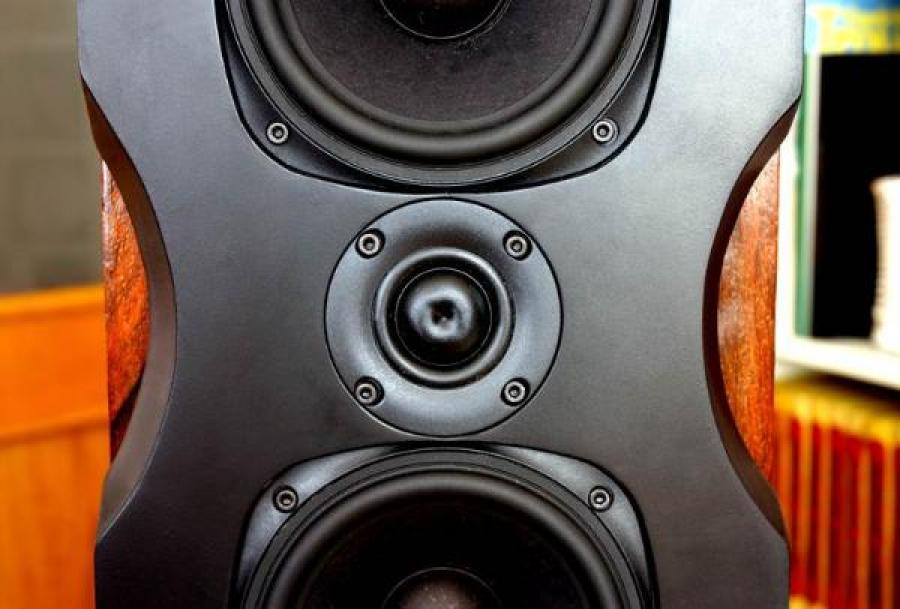

Photo of the front of designer's built speaker kit

Uluwatu - SB Acoustics Tower Speaker Kit - Pair

Manufacturer: SB Acoustics

3 Customer Review(s)

Product ID: Uluwatu-Kit-Pair

$789.00

Add to wish list E-mail to a friend

The Uluwatu - SB Acoustics 2.5-Way Tall Tower Speaker Kit - Pair

Named after the stunning beaches of Bali, the Uluwatu is a high sensitivity & high spl design utilizing six 5" midbass drivers and one 1" ring dome tweeter per speaker.

We again extend our gratitude to Curt Campbell for his design work and overall contribution to the DIY speaker building community.

Full documentation on this design can be found on Curt's website.

Flatpack cabinet available from SpeakerHardware here.

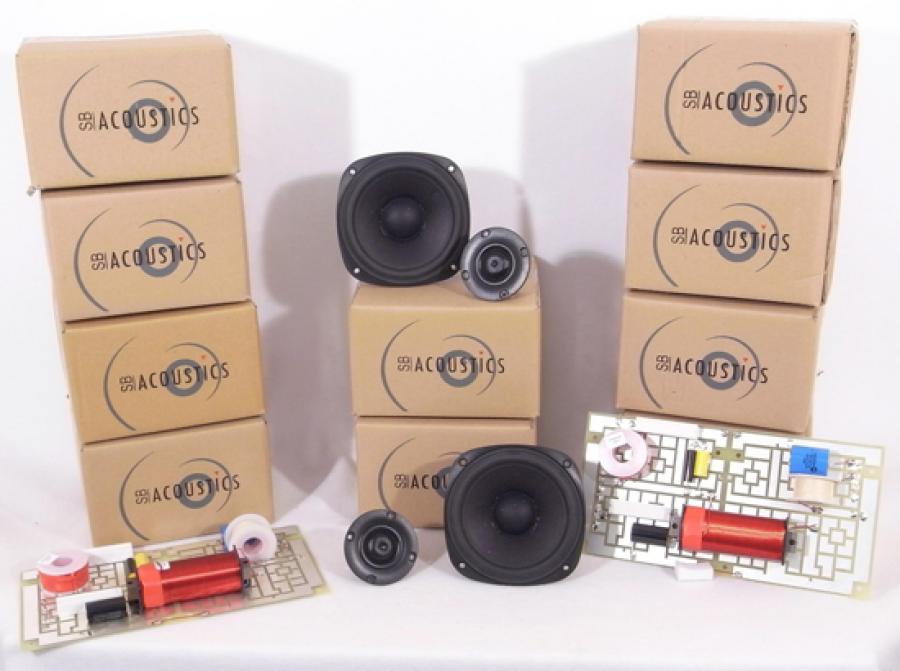

Each Kit Includes:

(12) SB13PFC25-08 5" Paper Cone Woofers
(2) SB29RDCN-C000-4 1" Neo Magnet Ring Dome Tweeters
(2) Professionally Assembled Crossovers (info & schematic)

Optional Accessories Package Includes:

(2) 4" Flared Ports - outside flare + connecting ring + inside flare
(40ft) Supra Classic 1.6 internal hookup wire
(4.5lb) Acousta-Stuf internal damping material
(28) Quick Connects for woofers & tweeters - woofers use QC187R & QC110B, tweeters use QC110R & QC110B
(56) Socket Head screws - 48 pcs OXSOCKET8X1, 8 pcs OXSOCKET6X3_4

Price shown includes at least a 10% discount on all drivers and accessories.

Discounted Binding Posts/Input Cups are also available with from the drop down menu.

Speaker Cabinet Dimensions:

47" tall! x 8.5" wide x 15" deep (cabinet plans)

SB29RDCN-C000-4 Ring Dome Tweeter & SB13PFC25-08 Paper Cone Woofer

High frequency reproduction is anchored by the SB29RDCN-C000-4 1" Neo Magnet Ring Dome Tweeter. This flagship tweeter of the SB has the required sensitivity and power handling to hold its own with six midbass drivers. Additionally, its smooth extended response and low distortion truly qualify it as a world class tweeter.

From their recently introduced lower price/high performance PFC line, SB Acoustics hit one out of the park with the SB13PFC25-08 5" Paper Cone Woofer. This quickly became a go-to for the discerning builder, providing everything we have come to expect from SB in a truly budget friendly package.

Assembled Crossover

Madisound professionally assembled Uluwatu crossovers use high quality parts throughout. Each channel is mounted on a MatrixDouble inlaid copper circuit board. All parts are terminated with silver solder. The woofer section includes Sledgehammer SL 15 awg & Sidewinder 16 awg coils. The tweeter cap is a ClarityCap PX. All parts hold to the exact values of the design. This crossover board requires you to solder speaker wires to the designated points on the circuit board, as specified in the included hookup sheet.

Multiple capacitor upgrade options are available from the drop down menu above.

*Single Uluwatu Kits are available for 1/2 the price of a pair.*

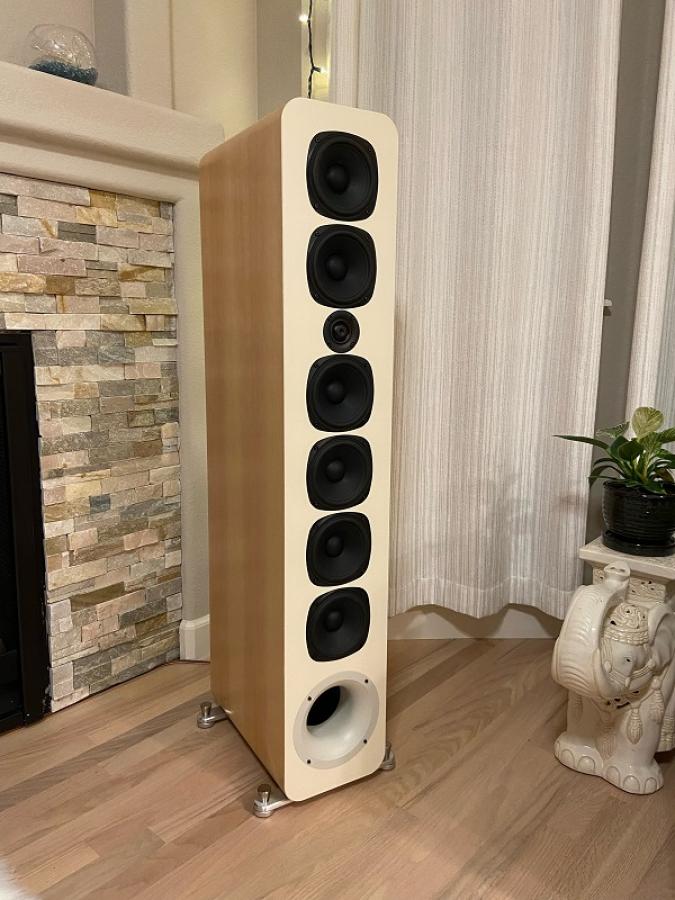

Pictures of customer completed kit with painted port tube for a nice aesthetic touch!

3 Customer Review(s)

Can't be beat

Reviewed by lucidityaudio on 04/08/2022

I moved mine to the bedroom because I've been building so many other speakers and kits. Yesterday I returned to the bedroom after auditioning a very high end pair of open baffle speakers. My Uluwatu's were embarrassingly better. It's just a monster speaker, top to bottom.

Verified Purchase

goes to 11

Reviewed by virtueaudio on 09/09/2021

At the outset, this speaker makes sense. You are going to invest significant time building a huge wooden box. You're cutting, sanding, finishing, wiring, stuffing, damping (and in my case, two drills, countless bits, cans of spray paint, veneer redos)... building these things is a huge investment. So why aim low?
Let's say you build a 2-way. Time align the drivers. Feeling good, right? But is it worth it? You build an MtM? Nice clean presentation. Strong mids, respectable low bass. And then you think, what if I had an MtMWW. Let's just add a few more drivers, right? Drivers are pretty cheap ... I mean, you're time is worth something too, right? So you add a few drivers and are feeling a little better. But are you? You're looking at a pile of scraps left over from those 2 sheets MDF. What more could you have done? You ported the speaker so you wouldn't have to bother with a curvilinear transmission line. The base is pretty good ... say 38hz, but did you know you didn't build state of the art. Curt gets another octave from his designs. You spent a ton on drivers but the system sensitivity is 86db. That doesn't matter, right? Or does it... What if you could double sound pressure for the same amplifier watt? Say goodbye to regrets and BUILD THIS ONE. As the last reviewer indicated, this speaker is so crisp and clear and loud - it absolutely shames bad recordings, mediocre production, and compression. The drivers are so accurate and fast and coherent that big music sounds big. Jazz especially, female vocals, music with texture -- what for an audiophile is... music. They sound unbelievable and I don't feel like there was a square inch or missing driver or smart enclosure design or anything affordable, left on the table. Bravo Curt and Adam. I'm a bit shocked more of these don't go out the door and maybe because they're so affordable. Before Madisound jacks the price, get yours.

Verified Purchase

Very Happy

Reviewed by seantosz on 11/26/2014

I finished my build of this and my initial reactions are positive. Got these setup at my coffee shop and they are show stoppers. I chose these because of the visual presence, slim dimensions and ability to placed against the wall. The high SPL level performance is very satisfying. It will keep climbing into higher decibels without distortion. The bass is very controlled and clear. Upright/Double basses in jazz and rockabilly never sounded better. Wonderful hifi performance that doubles as a party system.
