Scan-Speak Ellipticor A50 3.5-way Speaker Drivers - Pair
Manufacturer: ScanSpeak
Product ID: Ellipticor A50
Price:
$10,530.00
Overview
Scan-Speak Ellipticor A50 3.5-way Speaker Kit - Pair Cabinet Dimension are 41" tall x 17.7" wide x 17.7" deep
Scan-Speak Ellipticor A50 3.5-way Speaker Drivers - Pair
The A50 is an absolute top of the line large floorstanding speaker using four Ellipticor drivers per cabinet in a 3.5-way configuration.
Scan-Speak commissioned Troels Gravesen to design this speaker.
Full details, including the enclosure drawing, crossover schematic, and measurements can be found on his website by clicking here.
Madisound is proud to offer a discount on the drivers for this design.
Pricing shown includes a 10% discount on the complete set of drivers.
We demod this speaker with Scan-Speak at Axpona 2023, see pictures below. Wow!
Each Ellipticor A50 Purchase Includes:
Crossover Information
As with all open source designs in which a schematic is publicly available, Madisound can supply the high-end capacitors, inductors, and resistors required for the crossovers.
We have selected staff favorite parts for our own A50 build, leaving nothing to chance on a speaker of this stature. We recognize everyone has their personal preference in parts, so can help walk you through the options for your own project.
Professionally assembled built to order crossovers are also available. This is a great option for builders confident in their carpentry and building skills, but prefer to take any guesswork out of the network assembly. Contact us for a quote.
We build our crossovers on our silver tinned inlaid OFC copper circuit boards. For those building their own, point-to-point wiring on breadboards is the most common practice.
Make sure to wire the D8404 midrange with reverse polarity.
The A50-II option which substitutes a Hypex DSP amp for the passive crossover on the 15" woofer, removes six components and lowers the crossover parts cost.
Inside View of Ellipticor Drivers

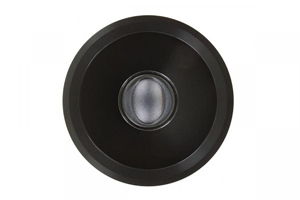

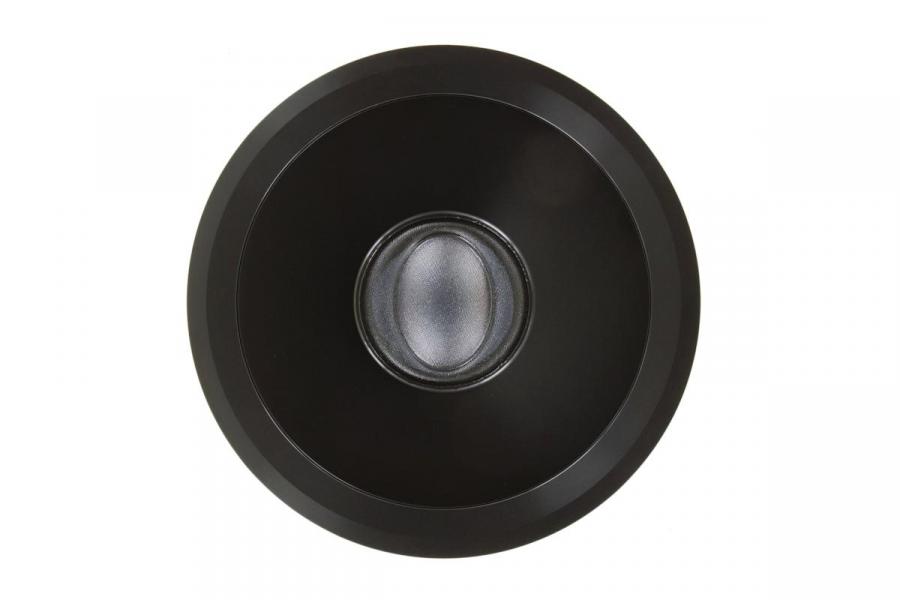

D2404/5520-00 24mm Elliptical Dome Tweeter

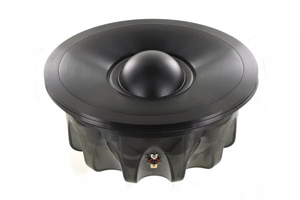

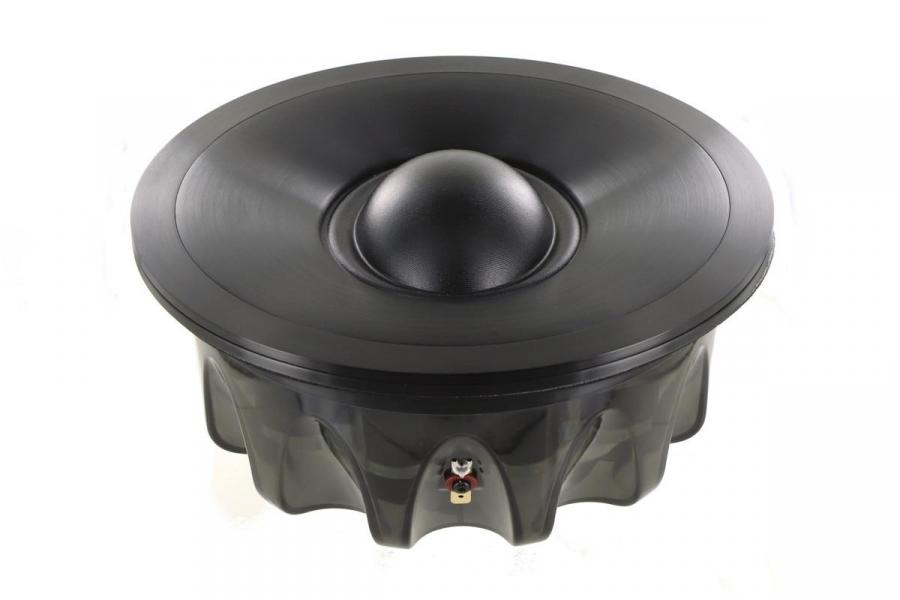

D8404/552000 84mm Elliptical Dome Midrange

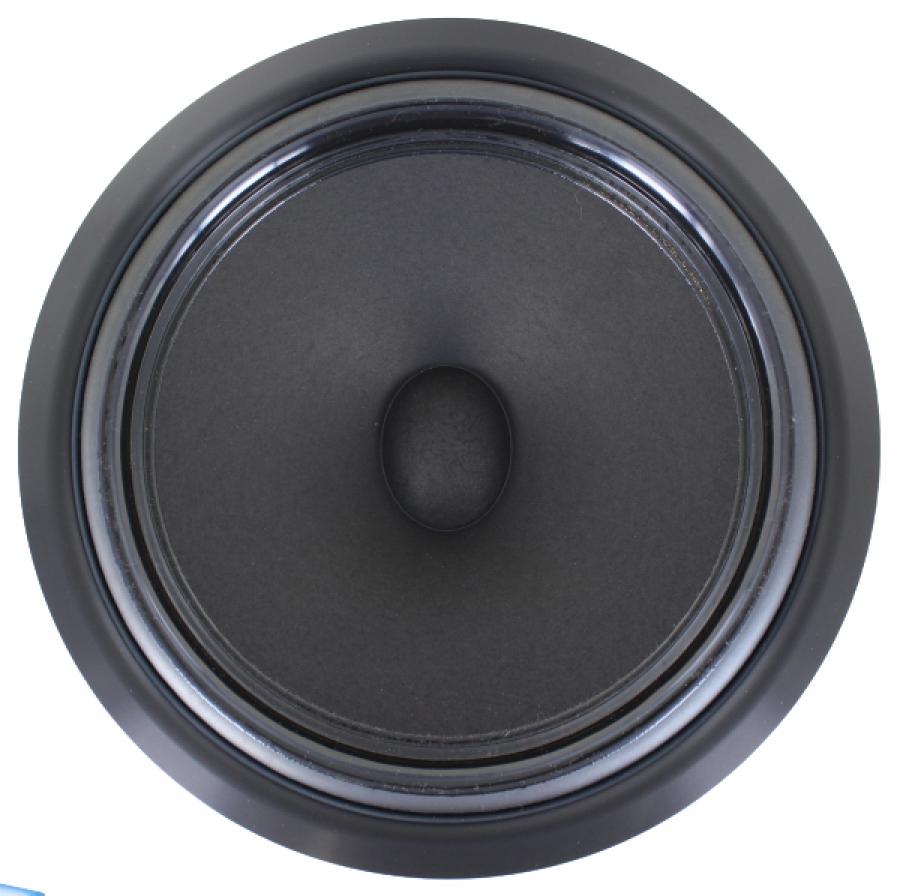

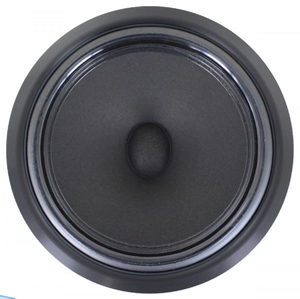

21WE/8542T-00 8" Mid-Woofer

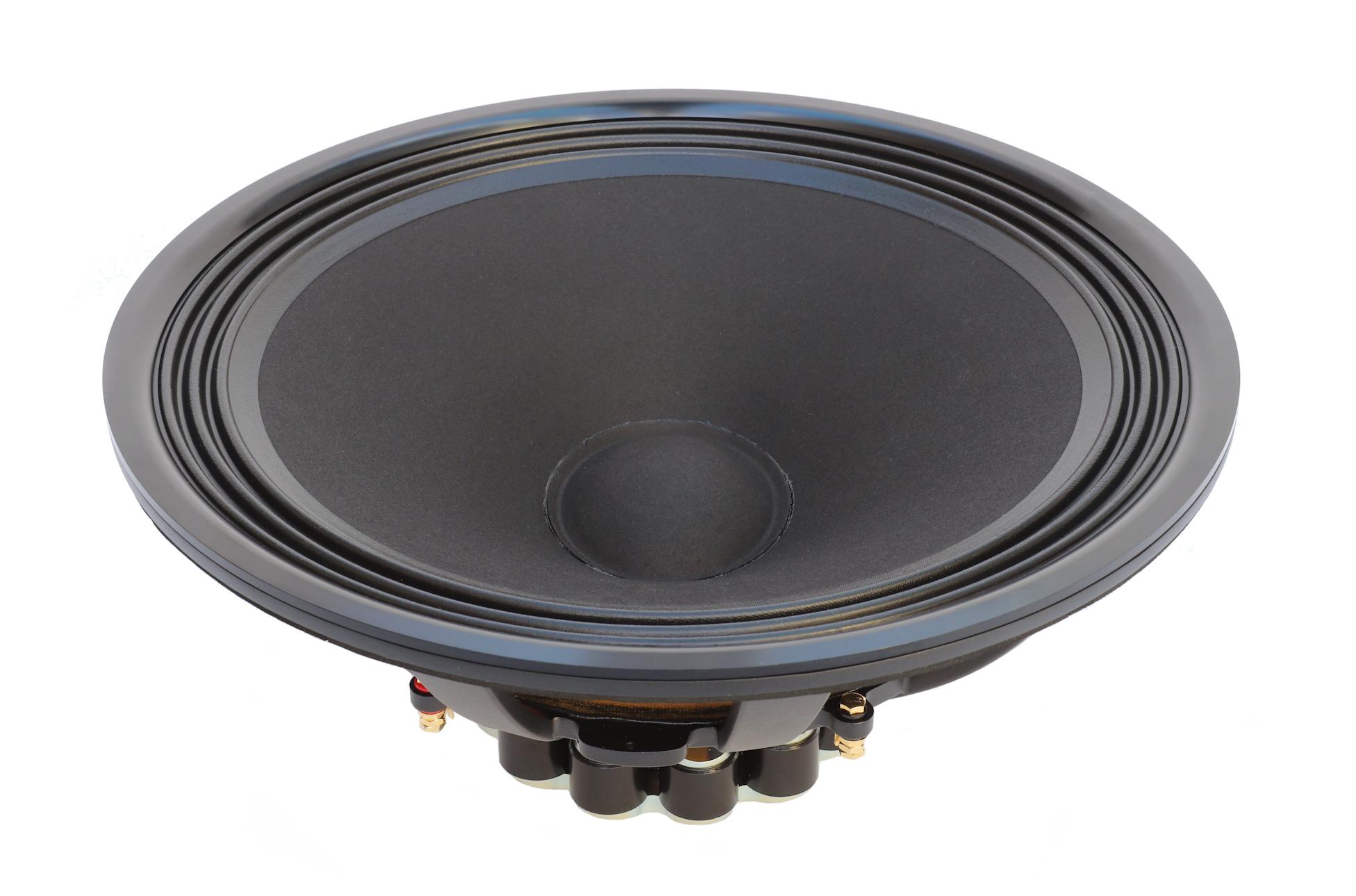

38WE/8582T00 15" Woofer

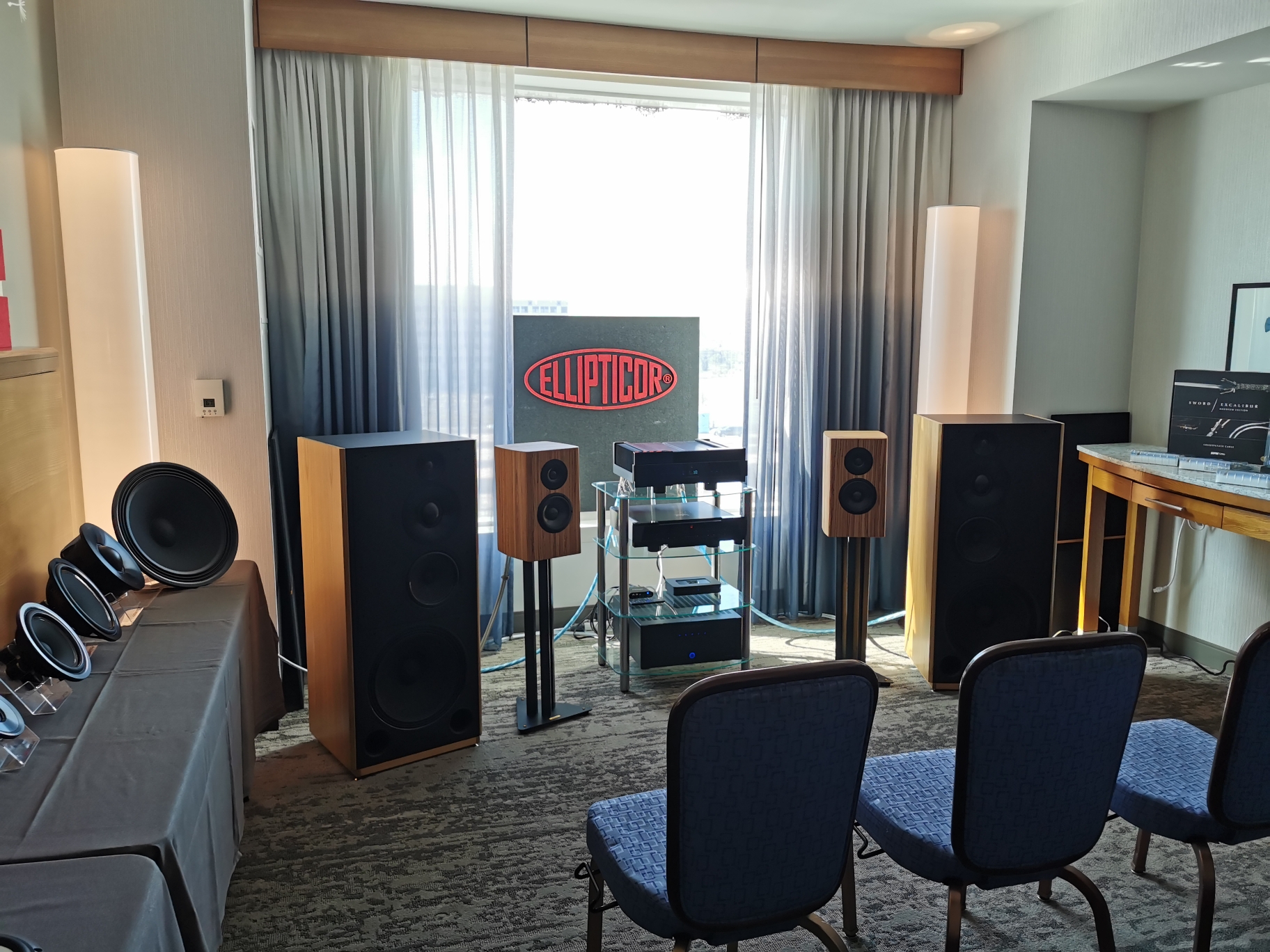

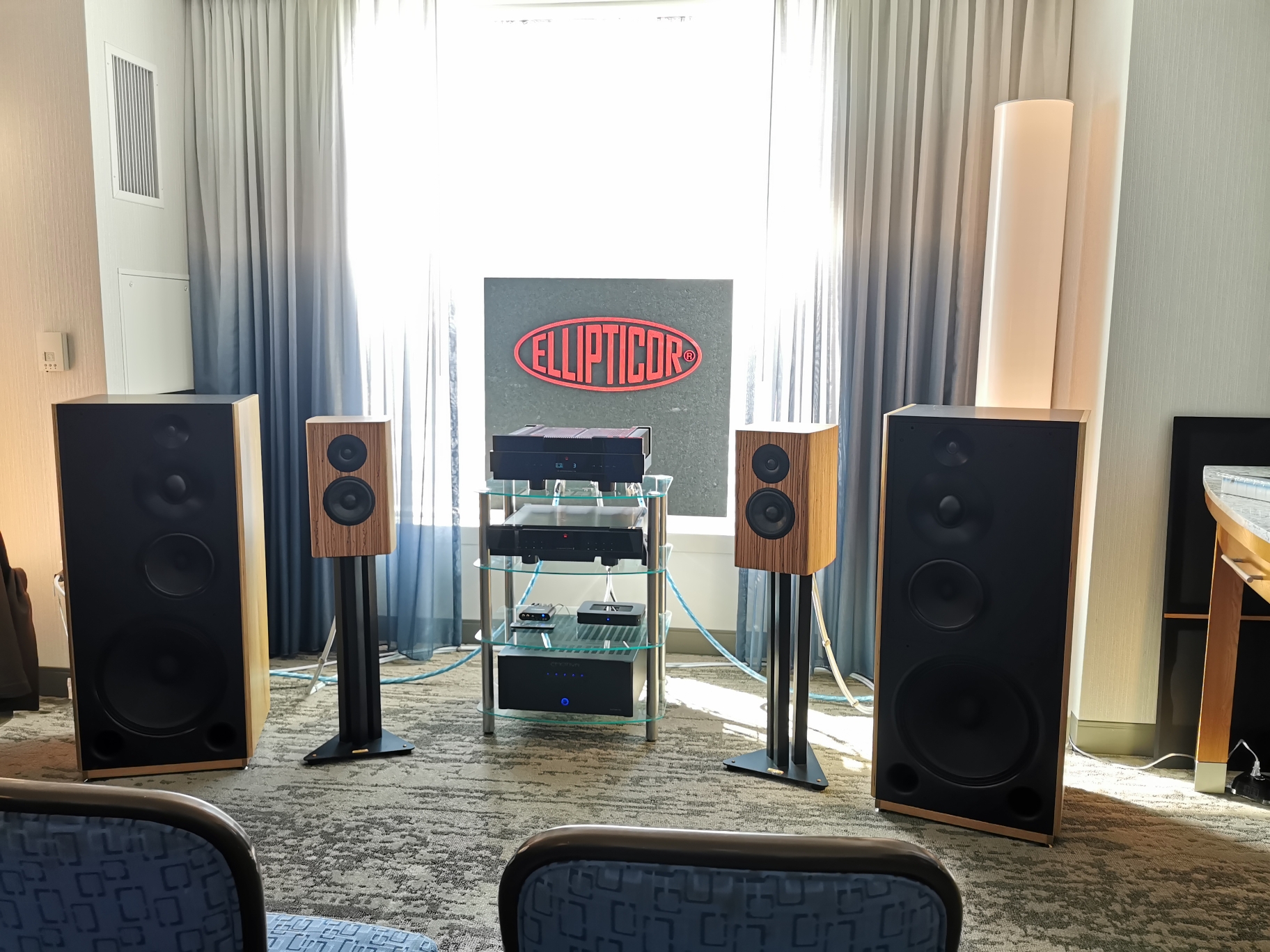

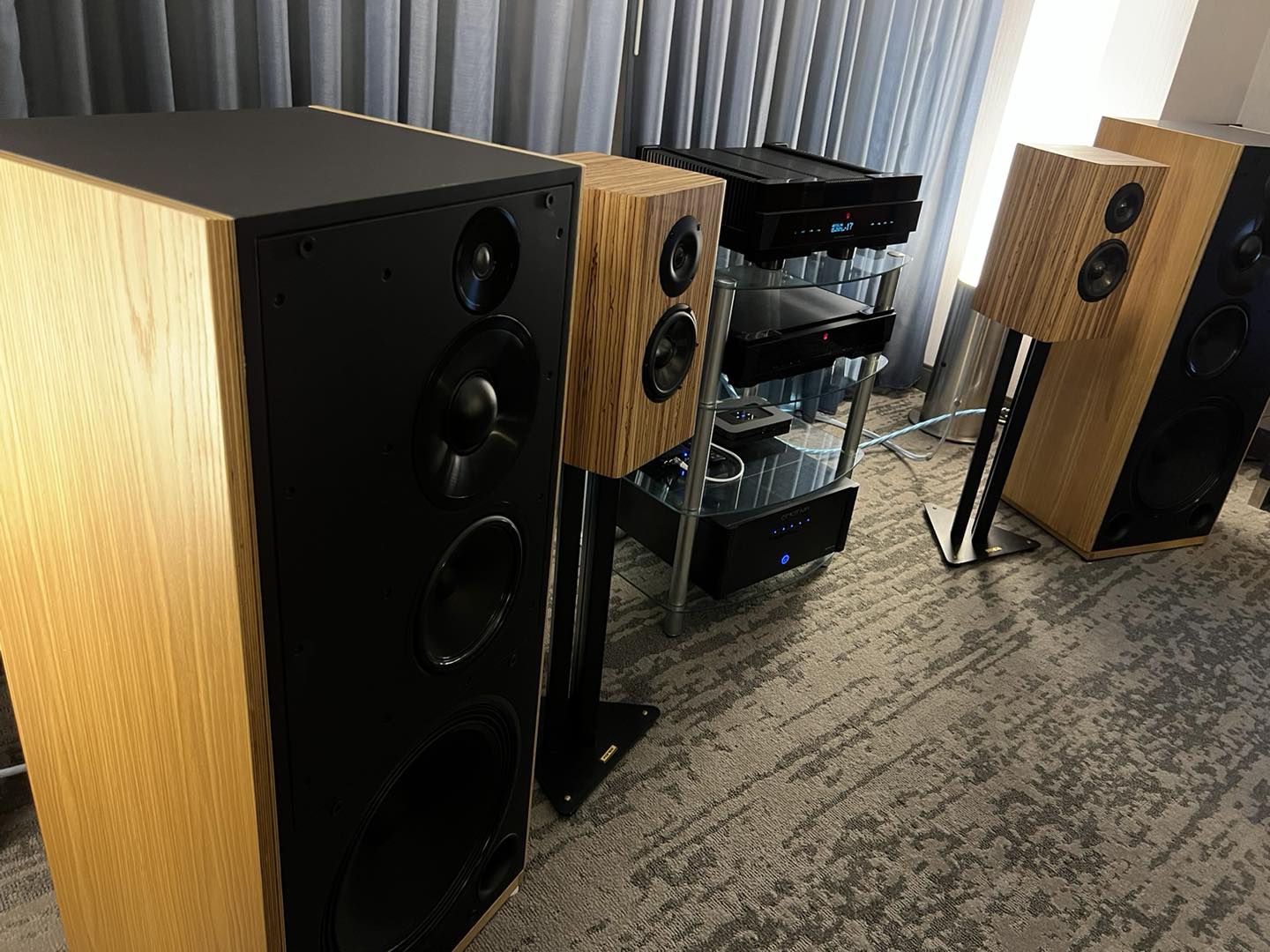

Axpona 2023 Pictures
The A50 is an absolute top of the line large floorstanding speaker using four Ellipticor drivers per cabinet in a 3.5-way configuration.
Scan-Speak commissioned Troels Gravesen to design this speaker.
Full details, including the enclosure drawing, crossover schematic, and measurements can be found on his website by clicking here.
Madisound is proud to offer a discount on the drivers for this design.
Pricing shown includes a 10% discount on the complete set of drivers.
We demod this speaker with Scan-Speak at Axpona 2023, see pictures below. Wow!
Each Ellipticor A50 Purchase Includes:
- (2) ScanSpeak Ellipticor D2404/5520-00 24mm Elliptical Dome Tweeters
- (2) Scan-Speak Ellipticor D8404/552000 84mm Dome Midranges
- (2) Scanspeak Ellipticor 21WE/8542T-00 8" Mid-Woofers
- (2) Scan-Speak Ellipticor 38WE/8582T00 15" Woofers
Crossover Information
As with all open source designs in which a schematic is publicly available, Madisound can supply the high-end capacitors, inductors, and resistors required for the crossovers.
We have selected staff favorite parts for our own A50 build, leaving nothing to chance on a speaker of this stature. We recognize everyone has their personal preference in parts, so can help walk you through the options for your own project.
Professionally assembled built to order crossovers are also available. This is a great option for builders confident in their carpentry and building skills, but prefer to take any guesswork out of the network assembly. Contact us for a quote.
We build our crossovers on our silver tinned inlaid OFC copper circuit boards. For those building their own, point-to-point wiring on breadboards is the most common practice.
Make sure to wire the D8404 midrange with reverse polarity.
The A50-II option which substitutes a Hypex DSP amp for the passive crossover on the 15" woofer, removes six components and lowers the crossover parts cost.

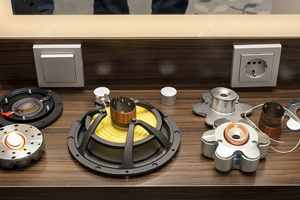

Inside View of Ellipticor Drivers
D2404/5520-00 24mm Elliptical Dome Tweeter
D8404/552000 84mm Elliptical Dome Midrange
21WE/8542T-00 8" Mid-Woofer
38WE/8582T00 15" Woofer
Axpona 2023 Pictures
