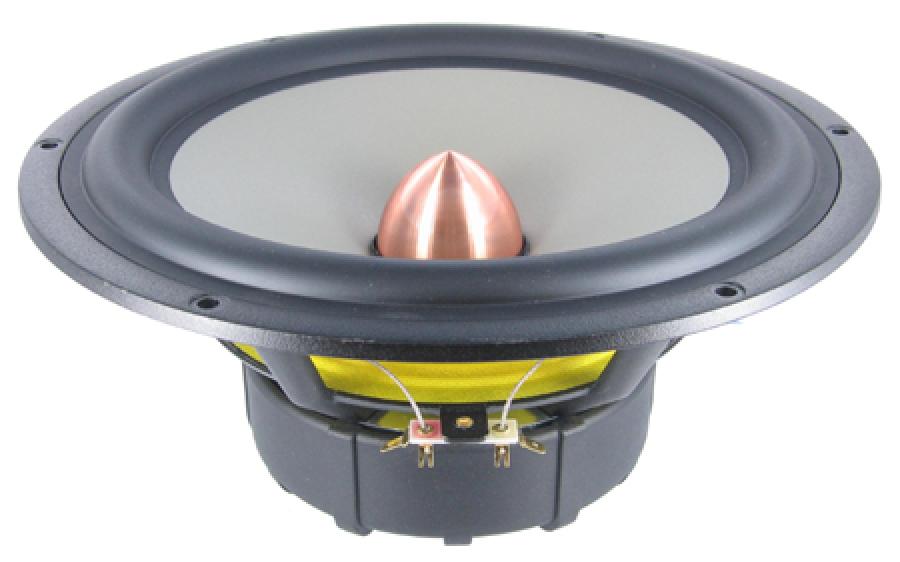

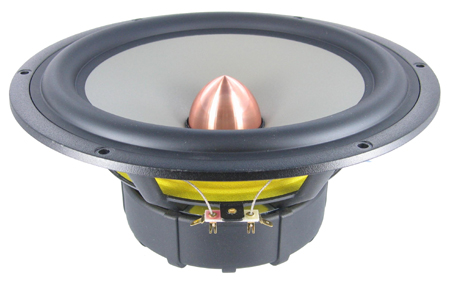

SEAS Excel W26FX-001 (E0026) 10" Aluminum Alloy Cone Woofer

*Special Order. Lead time is approximately 30 days once your order is placed.*

Seas W26FX-001 (E0026) 10" Excel Magnesium Cone Woofer- 269mm- 8 ohm

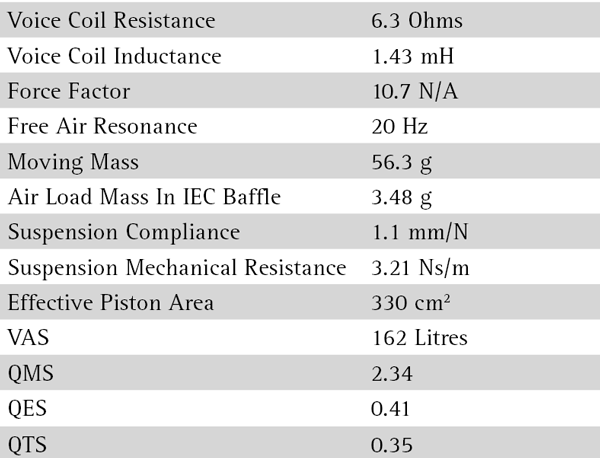

Spec Sheet PDF

Low distortion, excellent transient response, can tune as low as 20 Hz region in large vented box.

The extremely stiff cone made from aluminium/magnesium alloy gives tremendous bass precision. 2” diameter high temperature voice coil with black anodized aluminium coil former for high power handling and reduced power compression. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fibre reinforced plate to reduce contact resistance and improve reliability.

Suggested Box Alignments

• Sealed box of 1.0 cubic feet for F3 of 50Hz. 50% filling
• Vented box of 2.9 cubic feet for F3 of 26Hz. 3" diameter vent by 8" long
• Vented box of 3.5 cubic feet for F3 of 24Hz. 3" diameter vent by 6.8" long
