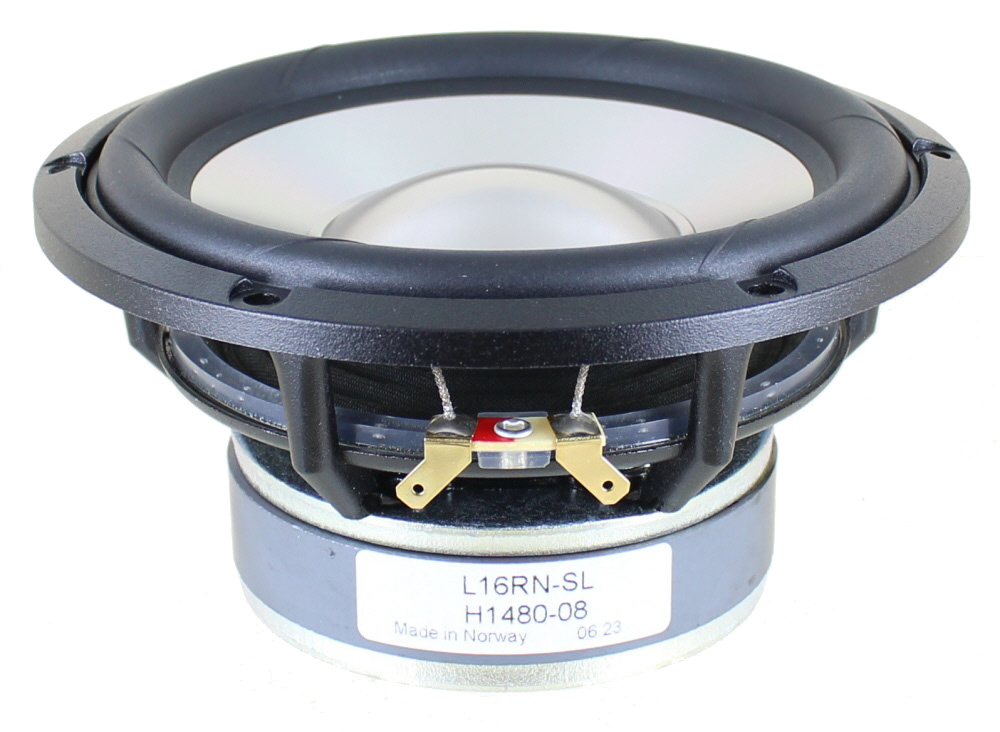

SEAS Prestige L16RN-SL (H1480) 6" Aluminum Cone Woofer

Seas L16RN-SL (H1480) 6" Aluminum Cone Woofer- 146mm- 8 ohm

6” (146mm) High Fidelity woofer with an injection molded metal chassis, well suited to sealed box designs. High Qts.

Passive Crossover Design for H1480 + H881

• Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.
• A bumped back plate in the magnet system together with the very long and light weight copper clad aluminum voice coil allow extreme coil excursion with low distortion.
• A heavy copper ring below the T-shaped pole piece, to reduce non linear and modulation distortion.
• Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment.
• Large windows in the basket both above and below the spider reduce sound reflection, air fl ow noise and cavity resonance to a minimum.
• Used in the LXmini Kit from Linkwitz Lab.

Suggested box alignment:

Sealed box of 0.3 cubic feet for F3 of 65Hz.  50% filling
