Scanspeak Ellipticor 18WE/4542T-00, 7" Midwoofer, 4 ohm

Scanspeak Ellipticor 18WE/4542T-00 7" Midwoofer-180mm- 4 ohm - 92.5 dB- Each

Spec Sheet PDF

Low Q, good for ported box.

With the Ellipticor family and introduction of an elliptical voice coil and magnet gap, a long tradition of circular motor structures and their inherent breakup behavior has been broken. In combination with the powerful SD AirCirc magnet system, the 18WE has high sensitivity, very low distortion, and an extremely fast response to transients. Above all, the TRUE TO LIVE sound makes the 18WE/4542T00 one of the very best and most advanced midwoofers on the market!

Box Suggestions:

• 0.15 to 0.25 cubic foot sealed for F3 of 150Hz
• 0.25 cubic foot with 2" diameter vent by 6.3" long for F3 of 69Hz
• 0.35 cubic foot with 2" diameter vent by 5.4" long for F3 of 60Hz
• 0.45 cubic foot with 2" diameter vent by 4.2" long for F3 of 55Hz
• 0.65 cubic foot with 2" diameter vent by 3.8" long for F3 of 48Hz

Mechanical Drawing

Factory Box - Packed in Pairs - Drivers Sold EACH

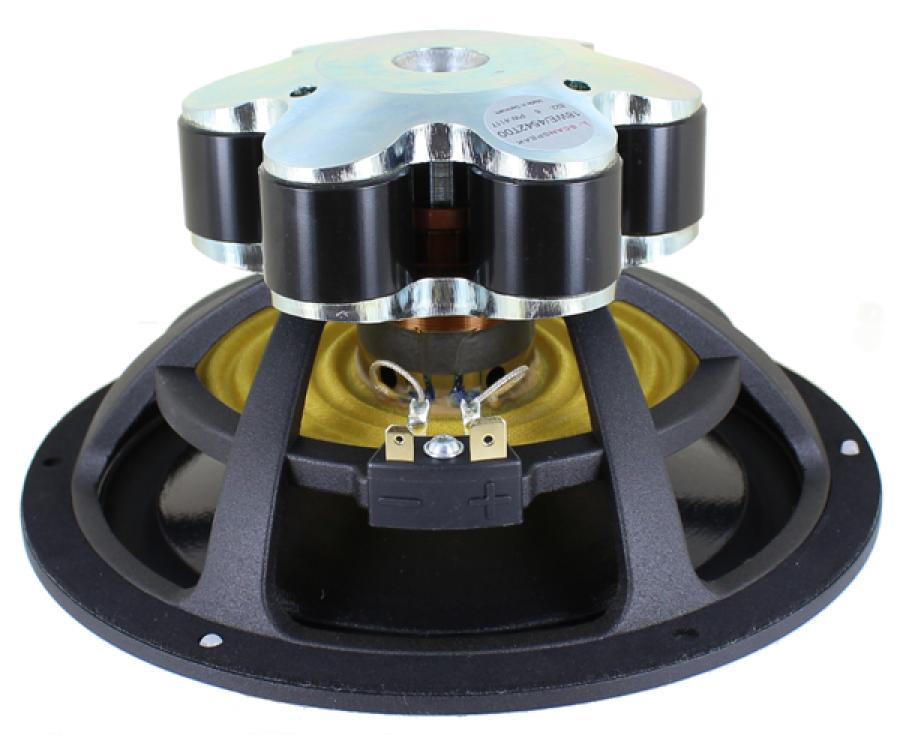

Look at That Frame & Motor!

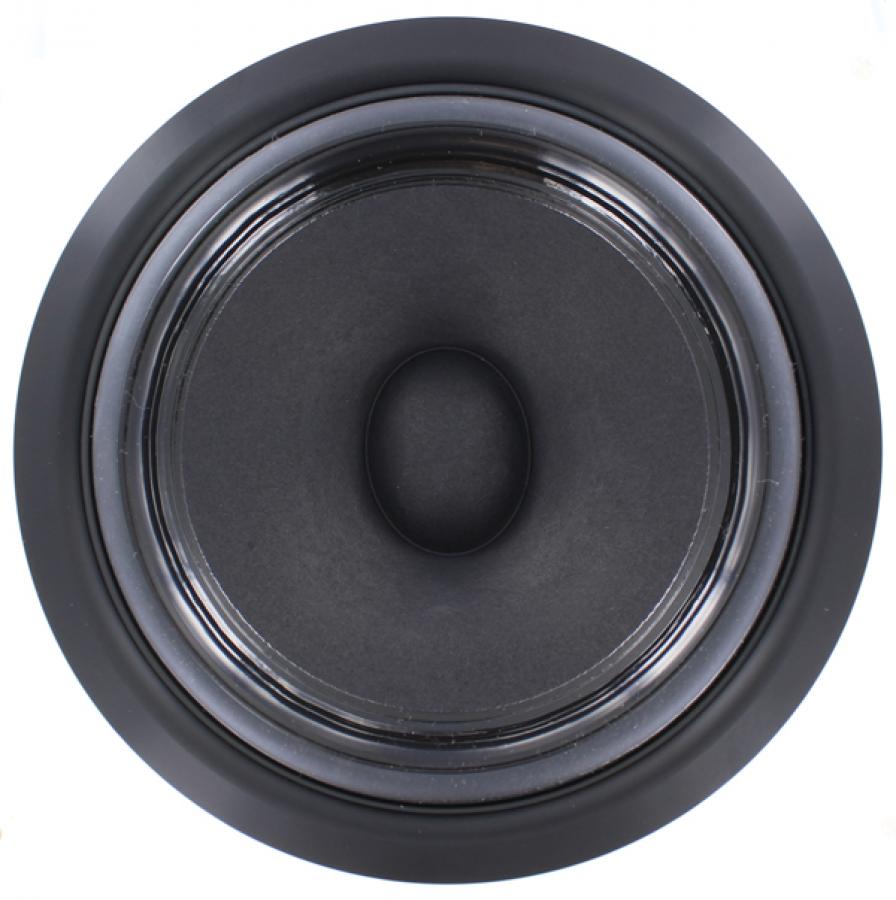

Elliptical Voice Coil = Elliptical Dust Cap

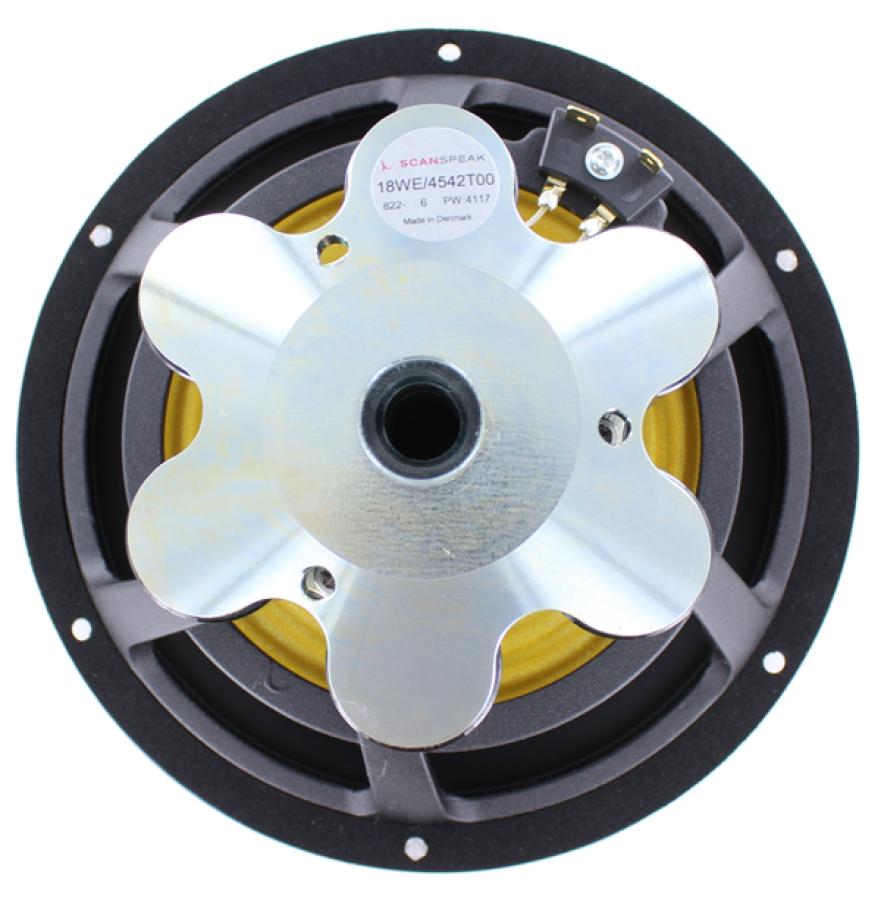

Shown with magnetic decore ring in place. Remove to expose 6 mounting holes in driver frame.
