SEAS Prestige U16RCY/P (H1520-08) 6" Curv Cone Woofer

SEAS Prestige U16RCY/P (H1520-08) 6" Curv Cone Woofer

Spec Sheet PDF

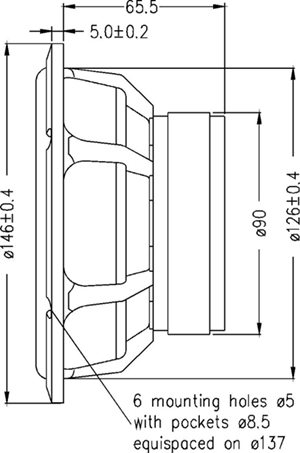

6” (146mm) High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs.

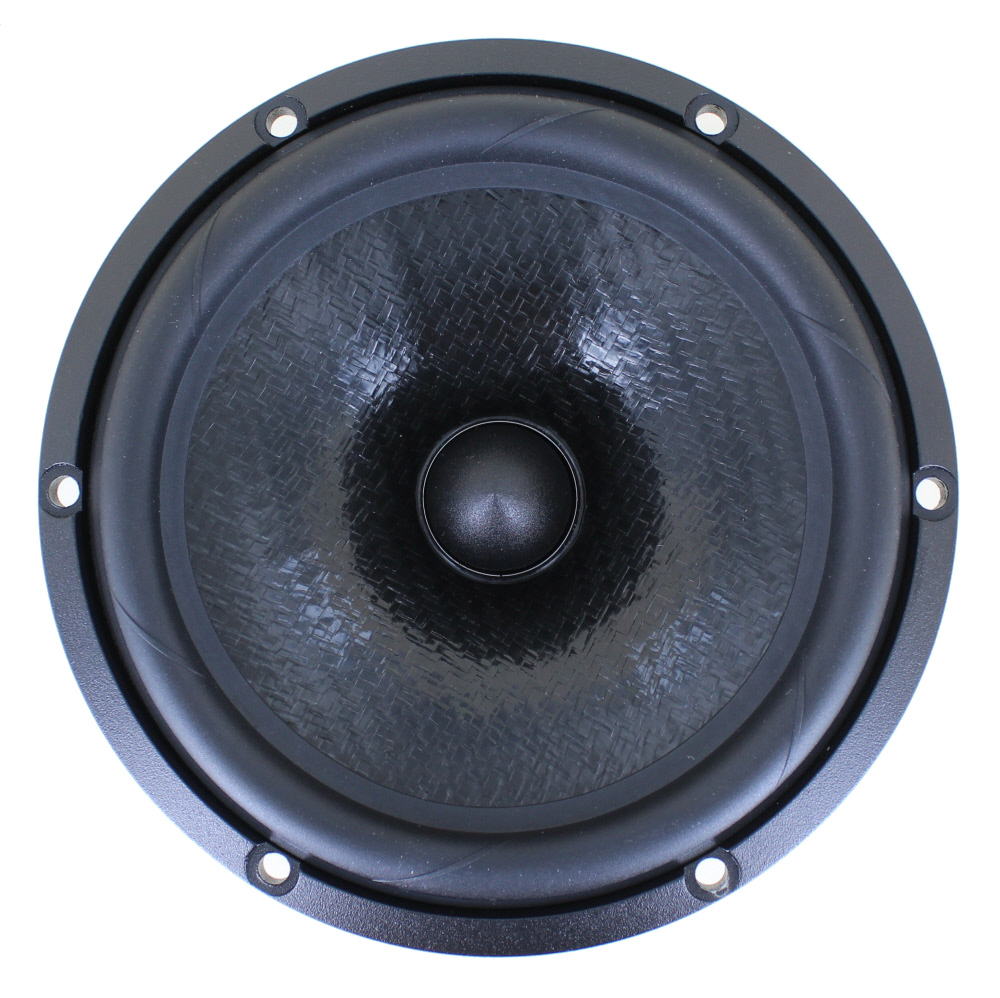

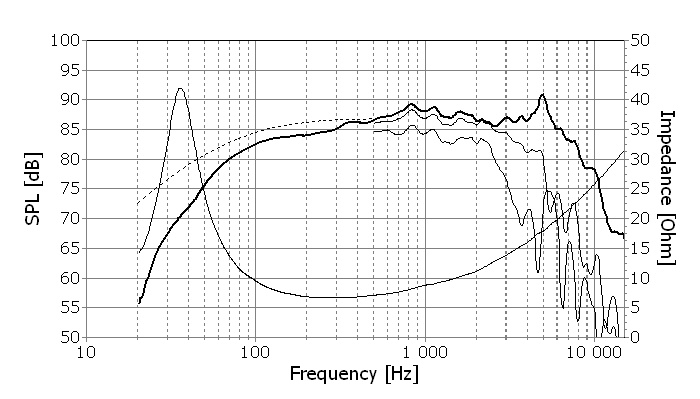

• New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.
• A unique radial reinforced low loss rubber surround reduces radial resonances and prevents surround break up at large excursions.

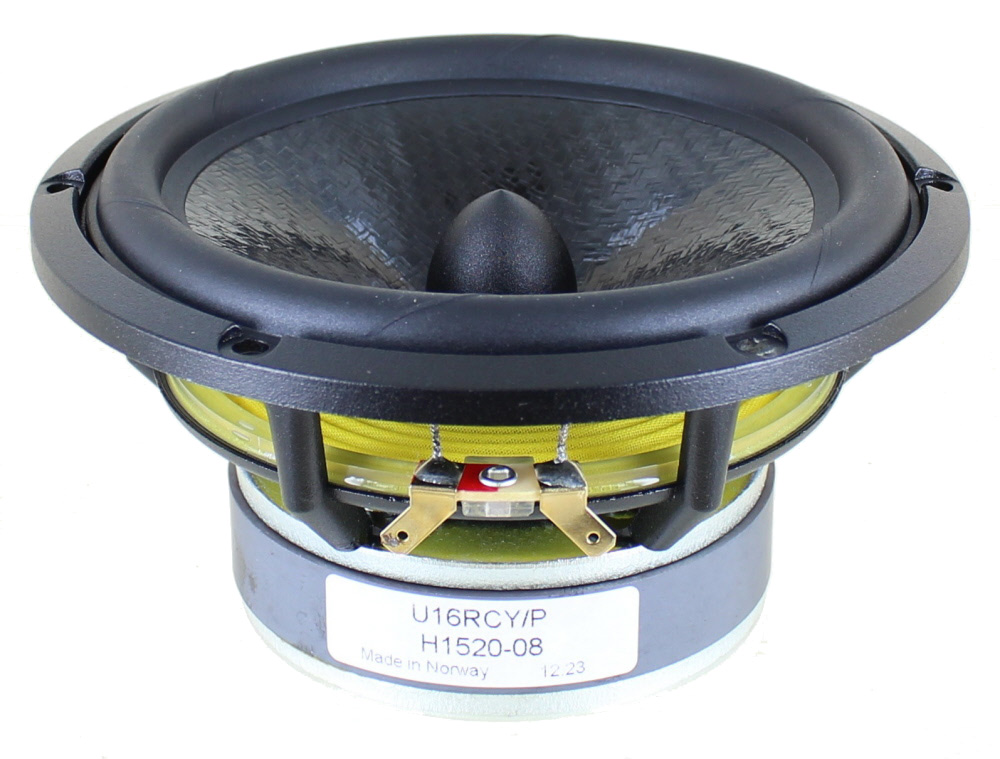

• Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.

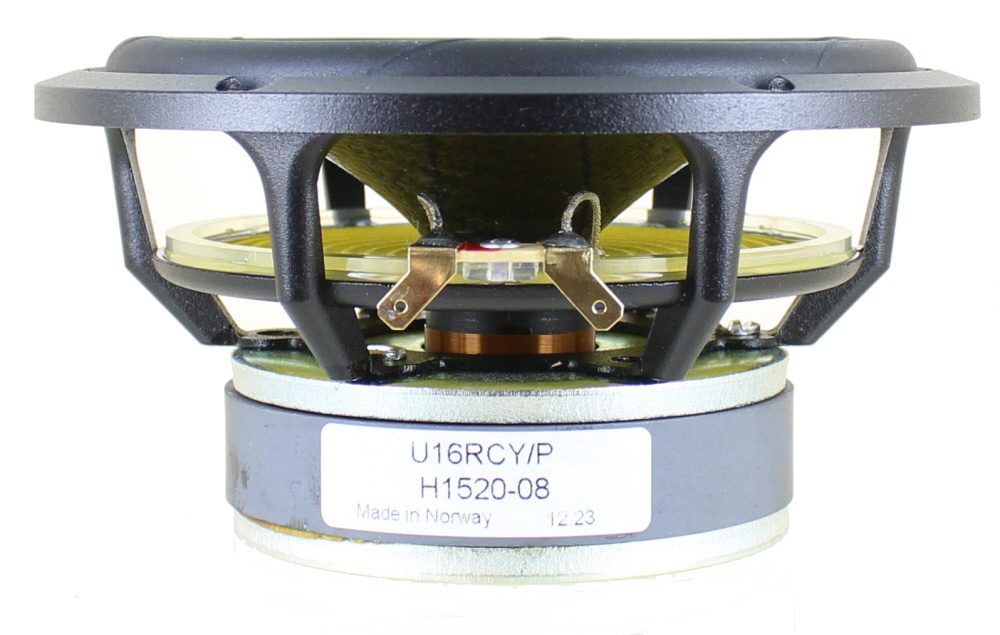

• Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
• This driver uses Seas SpiderRing® technology.

Enclosure suggestions:

• Sealed box of 0.15 cubic foot for an F3 of 92Hz.
• Vented box of 0.35 cubic foot with a 1.5" diameter vent by 6" long for an F3 of 56Hz.
• Vented box of 0.50 cubic foot with a 2" diameter vent by 6" long for an F3 of 47Hz.
• See box drawing below.
