ScanSpeak Illuminator 18WU/4741T-00 7" Woofer, 4 ohm

Manufacturer: ScanSpeak

Be the first to review this product

Product ID: 18wu_4741t

$414.60

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

ScanSpeak Illuminator 7" Paper Cone Woofer 18WU/4741T-00- 184mm- 4 ohm

ScanSpeak Illuminator 7" Paper Cone Woofer 18WU/4741T-00- 184mm- 4 ohm

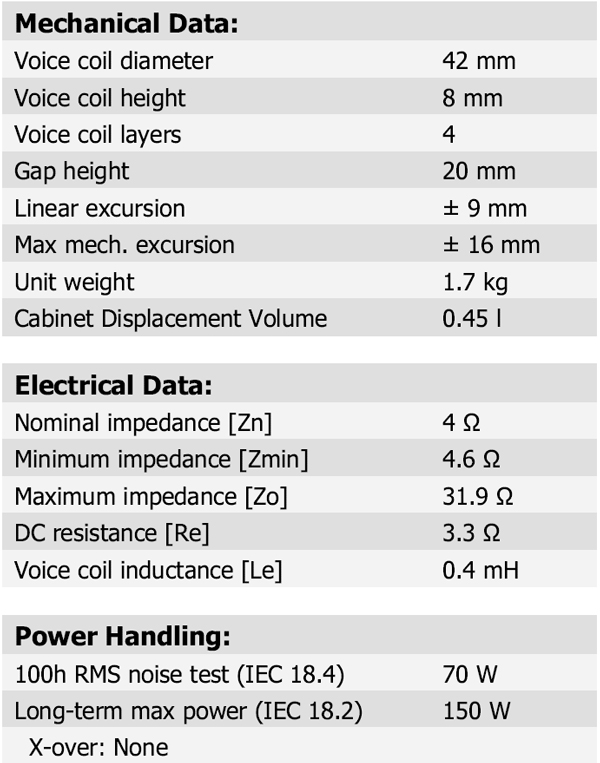

Spec Sheet PDF

The Illuminator woofers are in every aspect unusual designs with the open construction, the extremely long linear excursion and patented under-hung SD-3 (Symmetrical Drive) neodymium motor system, which due to copper caps and its construction ensures very low distortion, adding the unique patented cones, low-loss linear suspension the result is: ”The Very Best Money Can Buy”!

The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

Also written as: 18WU/4741T-00, 18WU 4741T 00, 18WU4741T00, 18WU 4741T, 18WU 4741T00, 18WU/4741T, 18WU/4741T00

Underhung voice coil
Neodymium magnet
Exceptionally long linear excursion
Paper cone

Madisound recommends:

Sealed box of 0.25 cubic feet for an F3 of 80Hz
Vented box of 0.5 cubic feet with a 2" diameter vent by 8" long for an F3 of 55Hz
Vented box of 0.75 cubic feet with a 2" diameter vent by 7" long for an F3 of 50Hz

Not rated yet

ScanSpeak Illuminator 18WU/4741T-00 7" Woofer, 4 ohm

Reviewed by jugyn on 04/09/2016

Installed in three way speakers, sealed box 35 liters of volume. The Wax coil film is specially ordered to 3.7 mH 16avg Jeantzen Audio Denmark,capacitors Mundorf M Cap, the DH Labs wire, solder mundorf silver gold, Terminals WBT-0735. Listening room is 18 square meter, accurate fast bass, no buzzing, speaker of very high quality! Any genre sound great! From classical to heavy rock!!! Power amps-monoblocks SONY TA-NR1, preamp ACCUPHASE DC-300, OPPO 105EU. Cabinets EMV-AUDIO WEIGHT 100KG EACH! https://www.youtube.com/watch?v=WyM2Ln9jesc https://www.youtube.com/watch?v=_pYmB1Y4jDM recorded iPhone 6s
https://www.youtube.com/watch?v=NXCb5QuKLws

wow so much sound

Reviewed by theoracleprodigy on 08/28/2012

I decided to build my first book shelf speaker. Originally I was going to build a three way speaker but everyone talked me out of that. I found these on sale from someone who didn't even use them and jumped at the chance. So glad I did. These were built with the Scanspeak Illuminator D3004/6620 tweeter. These were replacing an older pair of Infinity Crescendo 3007 speakers. For those that don't know those are a three way tower with twin 8' woofers. I was very scared these wouldn't put out the sound or have the impact I wanted. I was so wrong. These would compete with any two way system out there. I would bet they would out perform most all the high end audiophile speakers out there. I have listened to Wilsons, B&W's and a few others. The clarity, impact and preciseness of these is a surprise. They might not have as much impact as four 8' woofers but they don't lack anywhere either. If all you can build is one two way system save your pennies and get these. They are not cheap but worth it by far.
