SEAS Excel Bifrost Kit - Pair - Parts Only

Manufacturer: Seas Excel

3 Customer Review(s)

Product ID: bifrost

$1,709.00

Volume Pricing

10 - 10,000
10% off

Add to wish list E-mail to a friend

Overview

Seas Bifrost Speaker Kit 7" 2-way with Seas Excel Drivers

Seas Excel Bifrost Kit - Pair - Parts Only- 7" 2-way with Seas Excel Drivers

Price shown is for a PAIR

The Seas Excel Bifrost is a top of the line 2-way speaker kit utilizing the T29CF-002 “Crescendo” Tweeters and W18NX-001 7” Woofers. These drivers represent the highest end offerings from Seas of Norway. Detailed information on this kit design can be found on the Seas website.

BiFrost Datasheet PDF

BiFrost Enclosure PDF

BiFrost Cabinet Parts PDF

The T29CF-002, known as the “Crescendo”, is the flagship tweeter in the Seas Excel lineup. This Ultra High End 29mm soft dome tweeter employs a wide SONOMEX surround and high efficiency HEXADYM magnet system. Building on the success of the famous “Millennium” tweeter, Seas has once again raised the bar with the “Crescendo”. In addition to world class performance, the Nextel painted machined aluminum face plate with chrome plated brass center ring makes this one of the most visually appealing tweeters we know of.

The W18NX-001 is the 7” paper cone mid/bass woofer of the Seas Excel line. A Nextel coating is applied to the front side of the cone to provide added stiffness, while a special coating is also applied to the rear of the cone to reduce cone resonances. With such features as Adaptive Surround, copper clad aluminum voice coil, and heavy copper rings mounted both above and below the T-shaped pole piece, this driver is defined by its excellent transient response and very low distortion. The chrome plated solid copper phase plug and Nextel coated cone are a perfect cosmetic match to the “Crescendo” tweeter.

We are offering the Bifrost kit with assembled premium crossovers. The low pass circuit is now using Mundorf CFC 16 awg inductors in series with the woofer (picture still shows Goertz coils). The high pass circuit uses a Mundorf MCap Supreme capacitor and Mundorf MResist Supreme resistor in series with the tweeter. This component selection was carefully chosen to best match the drivers and design of this system. High quality resistors, caps and air core inductors are used in the remaining circuits. All Bifrost crossovers come assembled on a Matrix Double circuit board and are bi-wire/bi-amp capable. Alternate series capacitors for the tweeter (high pass) circuit are available on the drop down menu above.

Crossover Schematic:

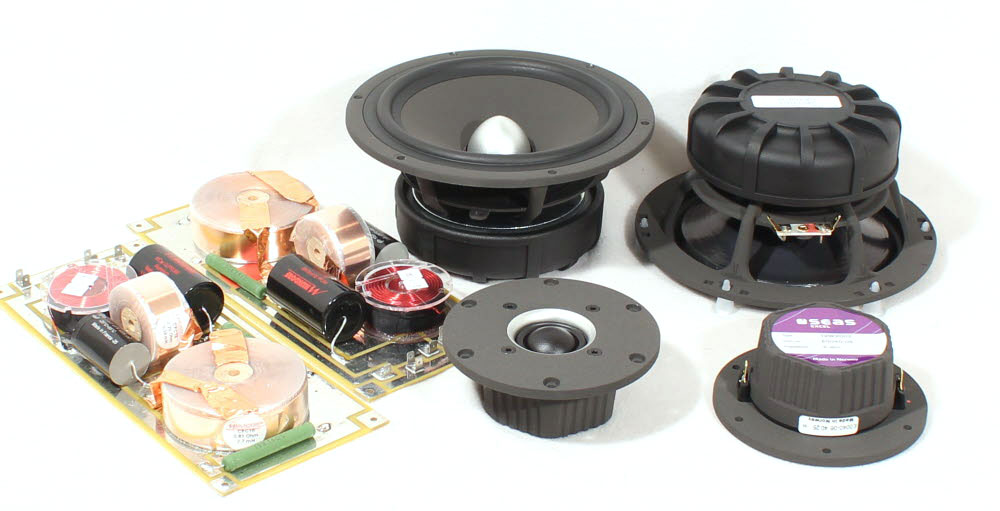

The Bifrost Kit includes:

(2) T29CF-002 “Crescendo” Tweeters
(2) W18NX-001 7” Woofers
(2) Premium Assembled Crossovers

Optional Bifrost Accessories Package includes:

(2) TD-CUPS Input Cups – 2 per pair
High quality gold plated brass binding posts
Accepts banana plugs, spades or raw wire
Bi-wire/Bi-amp capable
(2) 2FLARE 2” Precision Flared Ports Cut to 7" total including both flares
Promotes optimal air flow
Reduces/eliminates port noise and chuffing
(10') Supra Classic 1.6 Internal Wire – 15awg Tin Plated OFC Copper
(8') Foam gasket tape for air tight seal of drivers
(1) Goop - for gluing foam sheets and ports
(16) QC187 Quick Connects - 8 Red, 8 Black
Black Ox/Wax Mounting Hardware
(24) Screw Size 8, 1" Phillips Pan Head, Black Ox & Wax Finish
(8) Screw Size 6, 3/4" Phillips Oval Head, Black Ox & Waxfor TD-CUPS
Internal Dampening Materials
(1) Open cell acoustic Foam Sheet 27" x 42" x 5/8"
(0.6#) Acousta-Stuff complex fiber fill

You may select this accessories package along with kit purchase, or buy your parts individually. Kit pricing reflects a 10% discount to all drivers, crossovers, and optional accessories.

Tweeter Capacitor Options:

Clarity CSA Cap
Mundorf EVO Oil Cap
Mundorf Supreme Cap*
Mundorf Supreme EVO Silver/Gold/Oil Cap
Select form drop down menu

*Default premium crossover for the Bifrost kit. Pictured above.

Enclosure design:

The woofer T/S parameters are found in the datasheet. This data was entered into the driver editor in the LspCAD software from IJdata. Using the “Table Lookup Optimizer” with 0.3ohms entered as added series resistance (dc resistance of inductor in series with the woofer) the QB3 alignment suggests a box volume of about 14 liters. We have instead chosen to make the box a bit larger than this and aim for an EBS alignment. The simulation shows the frequency response in a cabinet volume of 18 liters, with a port tuning at 42 Hz.

Measurements:

The measurements are done in a free-field anechoic chamber at 1 meter on tweeter axis with an input voltage of 2.83 volts.

The green curve shows the system response with the tweeter connected with reversed polarity. The cancellation confirms that the drivers are in phase around the crossover region.

The system sensitivity is considerably lower then what is found in the two driver’s datasheets. This is intentional, and necessary to compensate for the so called “baffle step / spreading loss”. For further information see: http://www.t-linespeakers.org/tech/bafflestep/

Average sensitivity is 84dB SPL @ 1 meter with an input voltage of 2.83 volts. The measured axial frequency response variation is +/- 2dB between 71 Hz and 22 kHz. Minimum impedance is 7.5 ohm at 180 Hz.

The horizontal off-axis plots show a smooth response for the axial, as well as 20 and 40 degree angles.

Distortion at 90 dB SPL / 1 meter. Blue: 2nd harmonic - Red: 3rd harmonic.

High quality components results in a system with low distortion.

For users with simulation tools that wish to make adjustments to the crossover, or use the data for other purposes, we have made the raw driver response in the Bifrost cabinet available for download here.
